Card Type	Sound card
Chipset Controller	Unidentified
I/O Options	CD audio in, CD-ROM interface, game/MIDI port, line in, line/speaker out, microphone in, volume
Maximum DRAM	N/A

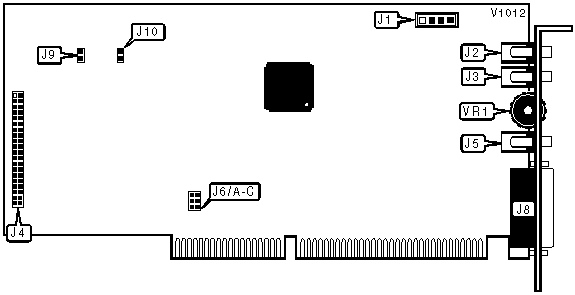

CONNECTIONS
Purpose	Location	Purpose	Location
CD audio in	J1	Line/speaker out	J5
Line in	J2	Game/MIDI port	J8
Microphone in	J3	Volume	VR1
CD-ROM interface	J4

MPU-401 CONFIGURATION
Setting		J9
»	Disabled	Closed
	Enabled	Open

GAME PORT CONFIGURATION
Setting		J10
»	Disabled	Closed
	Enabled	Open

BASE I/O ADDRESS SELECTION
Address		J6/A	J6/B	J6/C
»	340h	Closed	Closed	Open
	300h	Closed	Closed	Closed
	310h	Open	Closed	Closed
	320h	Closed	Open	Closed
	330h	Open	Open	Closed
