Card Type	Sound card
Chipset Controller	Mako (Media Vision)
I/O Options	CD-ROM audio, game/MIDI port, IDE connector, line in , line out, microphone in, speaker out, wavetable connector
Maximum DRAM	N/A

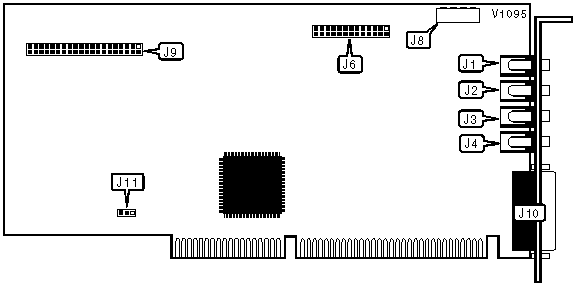

CONNECTIONS
Purpose	Location	Purpose	Location
Speaker out	J1	Wavetable connector	J6
Line out	J2	CD-ROM - audio in	J8
Line in	J3	40-pin IDE (AT) interface connector	J9
Mic in	J4	Game/MIDI port	J10

ONBOARD WAVETABLE CONFIGURATION
Setting		J11
»	Enabled	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed
