Card Type	Memory
Maximum Onboard Memory	8MB DRAM
Data Bus	MCA

DRAM
Size	Bank 0	Bank 1	Bank 2	Bank 3
512KB	(2) 256K x 9	None	None	None
1MB	(2) 256K x 9	(2) 256K x 9	None	None
1.5MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	None
2MB 1	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9
2MB 2	(2) 1M x 9	None	None	None
4MB	(2) 1M x 9	(2) 1M x 9	None	None
6MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	None
8MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9

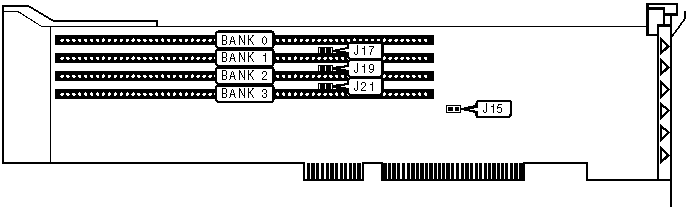

DRAM JUMPERS
Size	J15	J17	J19	J21
512KB	Open	Closed	Closed	Closed
1MB	Open	Open	Closed	Closed
1.5MB	Open	Open	Open	Closed
2MB 1	Open	Open	Open	Open
2MB 2	Closed	Closed	Closed	Closed
4MB	Closed	Open	Closed	Closed
6MB	Closed	Open	Open	Closed
8MB	Closed	Open	Open	Open
