Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	Game/MIDI port, CD-ROM audio in (2), IDE interface, microphone in, stereo line in, stereo line out, speaker out, PC speaker connector
Data Bus	16-bit ISA

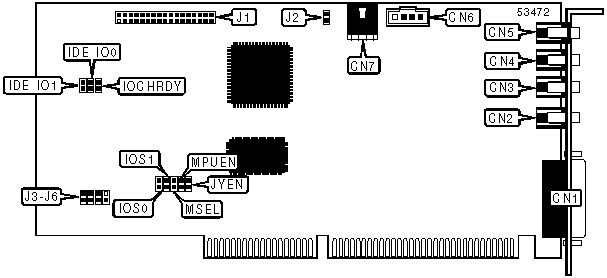

CONNECTIONS
Function	Label	Function	Label
Game/MIDI port	CN1	Audio in - CD-ROM	CN6
Speaker out	CN2	Audio in - CD-ROM	CN7
Line out	CN3	IDE Interface connector	J1
Microphone in	CN4	PC speaker connector	J2
Line in	CN5

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	IDE I/O channel enabled	IOCHRDY	Closed
	IDE I/O channel disabled	IOCHRDY	Open
»	MPU I/O address 330h	MSEL	Closed
	MPU I/O address 300h	MSEL	Open
»	MPU-401 enabled	MPUEN	Closed
	MPU-401 disabled	MPUEN	Open
»	Joystick enabled	JYEN	Closed
	Joystick disabled	JYEN	Open

BASE I/O ADDRESS
Setting		IOS0	IOS1
»	220h	Closed	Closed
	240h	Open	Closed
	260h	Closed	Open
	280h	Open	Open

IDE I/O ADDRESS
Setting		IDE IO0	IDE IO1
	Secondary	Closed	Open
»	Tertiary	Open	Closed
	Quaternary	Open	Open
	Disabled	Closed	Closed

IRQ INTERRUPT SELECTION
IRQ		J3	J4	J5	J6
	10	Closed	Open	Open	Open
»	11	Open	Closed	Open	Open
	12	Open	Open	Closed	Open
	15	Open	Open	Open	Closed

MISCELLANEOUS TECHNICAL NOTES

Note: The IRQ interrupt you select is dependent on the IDE I/O address specified by the IDEO0 and IDE01 jumpers.
