MULTIWAVE INNOVATION, INC.
16PNP FD SOUND CARD
|
Card Type |
Sound Card |
|
Chip Set |
ESS |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
Game Port, IDE Interface, Wavetable connector, line in, line out, microphone, CD-ROM - audio connector |
|
Data Bus |
16 Bit ISA |
|
Card Size |
Half-Length, full height |
|

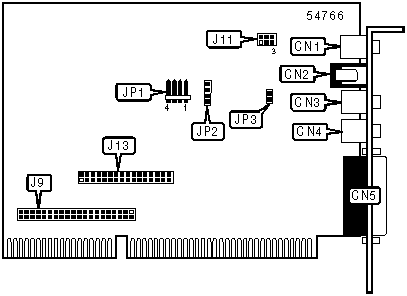

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Line out |
CN1 |
IDE Interface |
J9 |
|
6/9 Volt DC Output |
CN2 |
CD-ROM - audio connector |
JP1 |
|
Line in |
CN3 |
Auxiliary in |
JP2 |
|
Microphone in |
CN4 |
Wavetable Interface |
J13 |
|
MIDI/game port |
CN5 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Speaker Out |
J11 |
Pins 2 & 3, 5 & 6 closed |
|
Line Out |
J11 |
Pins 1 & 2, 4 & 5 closed | |
| » |
6 volt output |
JP3 |
Closed |
|
9 volt output |
JP3 |
Open | |
