Card Type	MIDI interface
Chipset Controller	N/A
I/O Options	Headphone jack, Minicircular connector (2), Stereo out jack (2)
Maximum DRAM	N/A

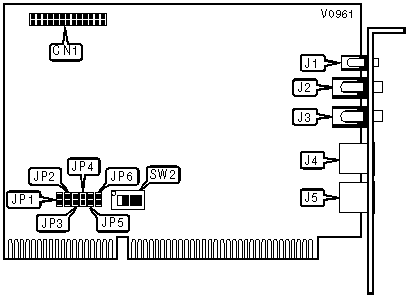

CONNECTIONS
Purpose	Location	Purpose	Location
Sound Canvas Daughterboard connector	CN1	Stereo out jack	J3
Headphone jack	J1	Minicircular connector	J4
Stereo out jack	J2	Minicircular connector	J5

BASE I/O ADDRESS SELECTION
Address		SW2/1	SW2/2	SW2/3	SW2/4
»	330h	Off	Off	On	On
	300h	Off	Off	Off	Off
	320h	Off	Off	Off	On
	332h	On	Off	On	On
	334h	On	On	On	Off
	336h	On	On	On	On

INTERRUPT CONFIGURATION
IRQ		JP1	JP2	JP3	JP4	JP5	JP6
»	2/9	Open	Open	Open	Open	Open	Closed
	3	Open	Open	Open	Open	Closed	Open
	4	Open	Open	Open	Closed	Open	Open
	5	Open	Open	Closed	Open	Open	Open
	6	Open	Closed	Open	Open	Open	Open
	7	Closed	Open	Open	Open	Open	Open
