Card Type	Sound card
Chip Set Maximum Onboard Memory	Unidentified Unidentified
I/O Options	CD-ROM interface, game/MIDI port, line in, line out, microphone in, speaker out, PC speaker in, audio in - CD-ROM, wavetable
Data Bus	16-bit ISA

CONNECTIONS

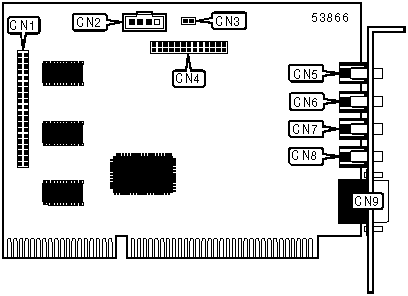

Function	Label	Function	Label
CD-ROM Interface (IDE)	CN1	Line out	CN6
Audio in - CD-ROM	CN2	Line in	CN7
PC speaker in	CN3	Microphone in	CN8
Wavetable connector	CN4	Game/MIDI port	CN9
Speaker out	CN5
