PHILIPS CONSUMER ELECTRONICS, CO.
PCA721AF
|
Card Type |
Sound card |
|
Chip Set Maximum Onboard Memory |
Unidentified Unidentified |
|
I/O Options |
Game/MIDI port, line out, line in, microphone in, speaker out, wavetable, audio in - CD-ROM |
|
Data Bus |
16-bit ISA |
|

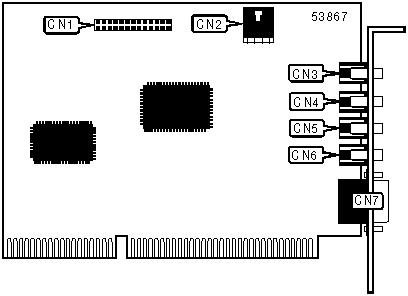

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Wavetable connector |
CN1 |
Microphone in |
CN5 |
|
Audio in - CD-ROM (IDE) |
CN2 |
Speaker out |
CN6 |
|
Line out |
CN3 |
Game/MIDI port |
CN7 |
|
Line in |
CN4 | ||
