Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	CD-ROM - audio interfaces (3), game port, IDE interfaces (3), line out, line in, microphone
Data Bus	16-bit ISA
Card Size	Three quarter length, full height

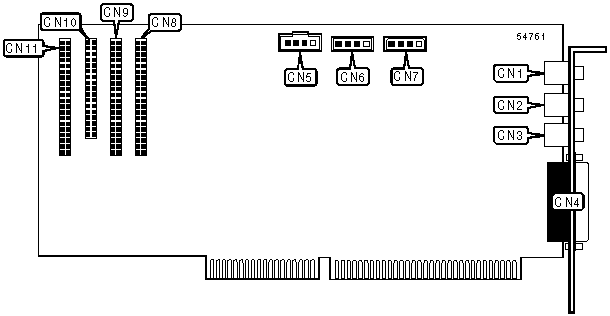

CONNECTIONS
Function	Label	Function	Label
Speaker Out	CN1	Panasonic Audio Connector	CN7
Line In	CN2	IDE CD-ROM Connector	CN8
Microphone in	CN3	Panasonic CD-ROM Connector	CN9
Game/MIDI port	CN4	Mitsumi CD-ROM Connector	CN10
Sony Audio Connector	CN5	Sony CD-ROM Connector	CN11
Mitsumi Audio Connector	CN6
