Card Type	Tape drive controller
Chipset/Controller	Unidentified
I/O Options	Tape drive connector (internal/external)
Maximum DRAM	N/A

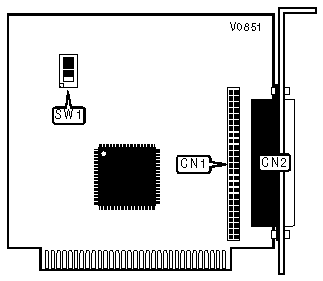

CONNECTIONS
Purpose	Location	Purpose	Location
Tape drive connector - internal	CN1	Tape drive connector - external	CN2

FACTORY CONFIGURED SETTINGS
Switch	Setting
SW1/1	Off
SW1/2	Off
SW1/3	Off
SW1/4	Off
