Card Type	Parallel card
Chip Set	HT 6535
Maximum Onboard Memory	None
I/O Options	Parallel port
Data Bus	16-bit ISA
Floppy drives supported	None

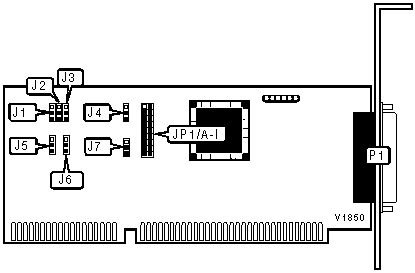

CONNECTIONS
Function	Location
25-pin parallel port	P1

PARALLEL PORT ADDRESS SELECTION
LPT		J1	J2	J3
»	LPT1(378h)	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
	LPT2(278h)	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
	LPT3(3BCh)	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
	LPT4(268h)	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
	LPT5(26Ch)	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
	LPT6(27Ch)	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed

PARALLEL PORT INTERRUPT SELECTION
IRQ		JP1/A	JP1/B	JP1/C	JP1/D	JP1/E	JP1/F	JP1/G	JP1/H	JP1/I
	IRQ3	Closed	Open	Open	Open	Open	Open	Open	Open	Open
	IRQ4	Open	Closed	Open	Open	Open	Open	Open	Open	Open
	IRQ5	Open	Open	Closed	Open	Open	Open	Open	Open	Open
»	IRQ7	Open	Open	Open	Closed	Open	Open	Open	Open	Open
	IRQ9	Open	Open	Open	Open	Closed	Open	Open	Open	Open
	IRQ10	Open	Open	Open	Open	Open	Closed	Open	Open	Open
	IRQ11	Open	Open	Open	Open	Open	Open	Closed	Open	Open
	IRQ12	Open	Open	Open	Open	Open	Open	Open	Closed	Open
	IRQ15	Open	Open	Open	Open	Open	Open	Open	Open	Closed

PARALLEL PORT MODE SELECTION
Setting		J5	J6
	SPP	Pins 2 & 3 closed	Pins 2 & 3 closed
»	ECP	Pins 1 & 2 closed	Pins 1 & 2 closed
	EPP	Pins 2 & 3 closed	Pins 1 & 2 closed
	PS/2	Pins 1 & 2 closed	Pins 2 & 3 closed

DMA CHANNEL SELECTION
Channel		J4	J7
»	1	Pins 1 & 2 closed	Pins 1 & 2 closed
	3	Pins 2 & 3 closed	Pins 2 & 3 closed
