Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	None
I/O Options	Audio in (2), audio out (2), CD-ROM audio (3), CD-ROM interface, game/MIDI port, microphone in (2), volume, wavetable
Data Bus	16-bit ISA
Floppy drives supported	None

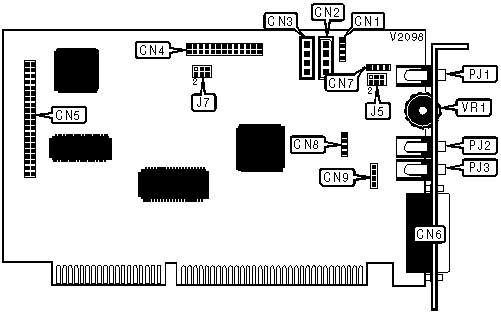

CONNECTIONS
Function	Label	Function	Label
Sony CD - audio in	CN1	Audio in	CN8
Panasonic/IDE CD - audio in	CN2	Mic in	CN9
Mitsumi CD - audio in	CN3	Audio out	PJ1
Wavetable	CN4	Audio in	PJ2
IDE CD-ROM interface	CN5	Mic in	PJ3
Game/MIDI port	CN6	Volume	VR1
Audio out	CN7

USER CONFIGURABLE SETTINGS
Function	Label	Position
Preamplifier enabled	J5	Pins 1 & 3, 2 & 4 closed
Preamplifier disabled	J5	Pins 3 & 5, 4 & 6 closed
Internal wavetable	J7	Pins 1 & 3, 2 & 4 closed
External wavetable	J7	Pins 3 & 5, 4 & 6 closed
