STALLION TECHNOLOGIES
EASY IO (RJ-45 VERSION)
|
Card Type |
Serial |
|
Processor |
CD1400 |
|
Processor Speed |
12.5MHz |
|
Chip Set |
Unidentified |
|
I/O Options |
Serial ports (4) |
|
Data Bus |
16-bit ISA |
|

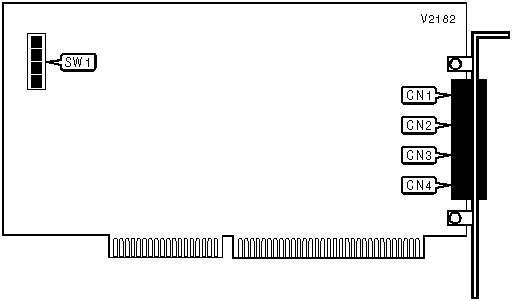

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Serial port 1 |
CN1 |
Serial port 3 |
CN3 |
|
Serial port 2 |
CN2 |
Serial port 4 |
CN4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
SW1/7 |
Off |
| » |
Factory configured - do not alter |
SW1/8 |
Off |
|
Note: The exact orientation of SW1/1 is unidentified. | |||
|
SERIAL PORT ADDRESS | |||||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 | |
|
200h |
On |
On |
On |
On |
On |
On | |
|
208h |
Off |
On |
On |
On |
On |
On | |
|
210h |
On |
Off |
On |
On |
On |
On | |
|
218h |
Off |
Off |
On |
On |
On |
On | |
|
220h |
On |
On |
Off |
On |
On |
On | |
| » |
2A0h |
On |
On |
Off |
On |
Off |
On |
|
3D8h |
Off |
Off |
On |
Off |
Off |
Off | |
|
3E0h |
On |
On |
Off |
Off |
Off |
Off | |
|
3E8h |
Off |
On |
Off |
Off |
Off |
Off | |
|
3F0h |
On |
Off |
Off |
Off |
Off |
Off | |
|
3F8h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
Note: A total of 63 base address settings are available. The switches are a binary representation of the hexadecimal memory addresses. SW1/6 is the Most Significant Bit and switch SW1/1 is the Least Significant Bit. The switches have the following hexadecimal values: SW1/6=100, SW1/5=80, SW1/4=40, SW1/3=20, SW1/2=10, SW1/1=8. Turn off the switches and add the values of the switches that are off to obtain the correct hexadecimal memory address. (Off=1, On=0) | |||||||
