Card Type	Sound card
Chip Set	ICS
Maximum Onboard Memory	None
I/O Options	CD-ROM audio, CD-ROM interface, game/MIDI port, line in, line out, microphone in, powered speaker out
Data Bus	16-bit ISA
Floppy drives supported	None

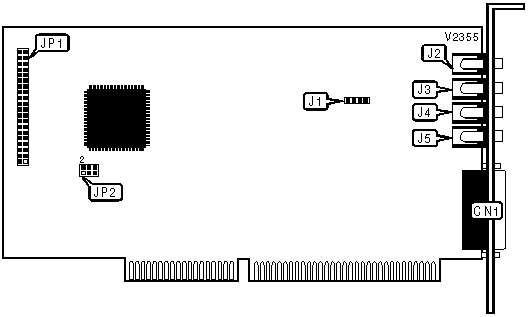

CONNECTIONS
Function	Label	Function	Label
Game/MIDI port	CN1	Line in	J4
CD-ROM - audio in	J1	Mic in	J5
Powered speaker out	J2	EIDE CD-ROM interface	JP1
Line out	J3

EIDE CD-ROM INTERFACE CONFIGURATION
Setting		I/O Address	IRQ	JP2
»	Secondary	170h	15	Pins 1 & 2 closed
	Primary	1F0h	14	Pins 3 & 4 closed
	Disabled	None	None	Pins 5 & 6 closed
