Card Type	Sound card
I/O Options	Game port/MIDI port
Data Bus	16-bit ISA
Card Size	Half-length, full-height card

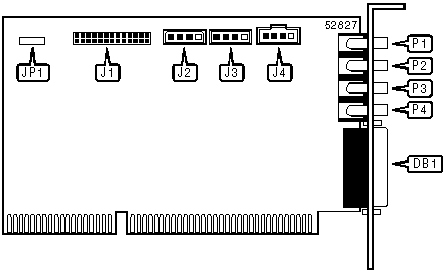

CONNECTIONS
Function	Label	Function	Label
Wavetable	J1	Microphone in	P1
Audio in CD-ROM - Panasonic	J2	Line in	P2
Audio in CD-ROM - Mitsumi	J3	Line out	P3
Audio in CD-ROM - Sony	J4	Speaker out	P4
PC speaker in (pin-out unidentified)	JP1	15-pin game/MIDI port - external	DB1
