SEALEVEL SYSTEMS, INC.
ACB-V
|
Card Type |
Serial controller |
|
Chip Set |
Unidentified |
|
I/O Options |
Serial ports (2) |
|
Data Bus |
8-bit ISA |
|
Card Size |
Half-length, full-height |
|

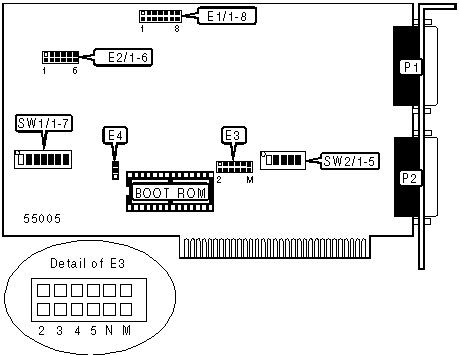

CONNECTIONS |
|||
|
Function |
Location |
Function |
Location |
|
Serial port 1 (Channel A) |
P1 |
Serial port 2 (Channel B) |
P2 |
|
INTERRUPT SELECTION |
||||
|
IRQ |
E3/2 |
E3/3 |
E3/4 |
E3/5 |
|
IRQ2 |
Closed |
Open |
Open |
Open |
|
IRQ3 |
Open |
Closed |
Open |
Open |
|
IRQ4 |
Open |
Open |
Closed |
Open |
|
» IRQ5 |
Open |
Open |
Open |
Closed |
|
IRQ MODE SELECTION |
||
|
Setting |
Label |
Position |
|
Normal mode enabled |
E3/N |
Closed |
|
Normal mode disabled |
E3/N |
Open |
|
» Multi mode enabled |
E3/M |
Closed |
|
Multi mode disabled |
E3/M |
Open |
|
DMA CHANNEL SELECTION |
|||
|
Channel A |
Channel B |
E1 |
E2 |
|
Disabled |
Disabled |
Open |
Open |
|
Ch.1 half-duplex |
Disabled |
Jumper 4 closed |
Jumpers 4 & 6 closed |
|
Ch.3 half-duplex |
Disabled |
Jumper 2 closed |
Jumpers 4 & 5 closed |
|
Disabled |
Ch.1 half-duplex |
Jumpers 3 & 5 closed |
Jumper 6 closed |
|
Disabled |
Ch.3 half-duplex |
Jumpers 1 & 5 closed |
Jumper 5 closed |
|
Ch.1 half-duplex |
Ch.3 half-duplex |
Jumpers 1, 4, & 5 closed |
Jumpers 1 & 3 closed |
|
Ch.3 half-duplex |
Ch.1 half-duplex |
Jumpers 2, 3, & 5 closed |
Jumpers 1 & 2 closed |
|
Full-duplex - Ch.1 receive & Ch.3 transmit |
Disabled |
Jumpers 1, 4, & 6 closed |
Jumpers 1 & 4 closed |
|
Full-duplex - Ch.3 receive & Ch.1 transmit |
Disabled |
Jumpers 2, 3, & 6 closed |
Jumpers 1 & 4 closed |
|
BASE I/O ADDRESS SELECTION |
|||||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
|
238h |
Off |
On |
On |
On |
Off |
Off |
Off |
|
280h |
Off |
On |
Off |
On |
On |
On |
On |
|
2A0h |
Off |
On |
Off |
On |
Off |
On |
On |
|
2E8h |
Off |
On |
Off |
Off |
Off |
On |
Off |
|
300h |
Off |
Off |
On |
On |
On |
On |
On |
|
5500h |
Off |
Off |
Off |
On |
Off |
Off |
Off |
|
6500h |
Off |
Off |
On |
Off |
Off |
Off |
Off |
|
7100h |
Off |
On |
Off |
Off |
Off |
Off |
Off |
|
7300h |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
7500h |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Note: A total of 255 base address settings are available. The switches are a binary representation of the decimal memory addresses. SW1/7 is the Most Significant Bit and switch SW1/1 is the Least Significant Bit. The switches have the following decimal values: SW1/7=16384, SW1/6=8192, SW1/5=4096, SW1/4=2048, SW1/3=1024, SW1/2=512, SW1/1=256. Turn off the switches and add the values of the switches to obtain the correct memory address. (Off=1, On=0) |
|||||||
|
EPROM ADDRESS CONFIGURATION |
||||
|
Address |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
C000h |
On |
On |
On |
On |
|
C400h |
On |
On |
On |
Off |
|
C800h |
On |
On |
Off |
On |
|
D000h |
On |
Off |
On |
On |
|
D400h |
On |
Off |
On |
Off |
|
D800h |
On |
Off |
Off |
On |
|
E000h |
Off |
On |
On |
On |
|
E400h |
Off |
On |
On |
Off |
