Card Type	Sound card
Chip Set	Unidentified
I/O Options	Wavetable connector, audio in - CD-ROM (2), line in, microphone in, line out, game/MIDI port
Data Bus	16-bit ISA
Card Size	Half-length, Full-height card

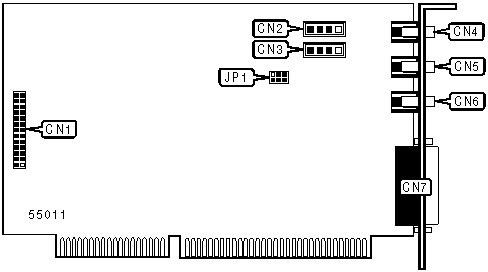

CONNECTIONS
Function	Label	Function	Label
Wavetable connector	CN1	Line in	CN5
Audio in - CD-ROM (AUX)	CN2	Microphone in	CN6
Audio in - CD-ROM (IDE)	CN3	Game/MIDI port	CN7
Audio out	CN4

USER CONFIGURABLE SETTINGS
Function	Label	Position
Audio out - Line out	JP1	Pins 1 & 2, 3 & 4 closed
Audio out - Speaker out	JP1	Pins 3 & 4, 5 & 6 closed
