TERRATEC PROMEDIA
XLERATE
|
Card Type |
Sound card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
Line in (2), line out (2), microphone in (2), Game/MIDI port, wavetable connector, 10-pin ActiveRadio connector |
|
Data Bus |
32-bit PCI |
|
Card Size |
Half-length, full-height card |
|

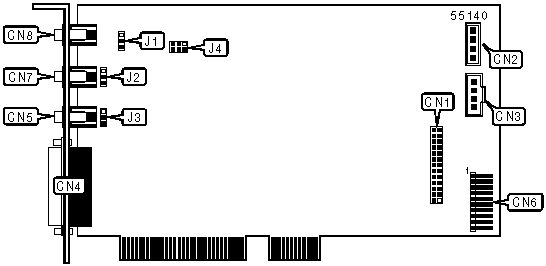

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
Wavetable connector |
CN1 |
Line in - external |
CN7 |
|
Audio in - CD-ROM (IDE) |
CN2 |
Line out - external |
CN8 |
|
Audio in - CD-ROM (Sony) |
CN3 |
Line out - internal |
J1 |
|
Game/MIDI port |
CN4 |
Line in - internal |
J2 |
|
Microphone in - external |
CN5 |
Microphone in - internal |
J3 |
|
ActiveRadio connector |
CN6 |
|
|
|
USER CONFIGURABLE SETTINGS |
||
|
Function |
Label |
Position |
|
» Line amplifier disabled |
J4 |
Pins 1 & 3, 2 & 4 closed |
|
Line amplifier enabled |
J4 |
Pins 3 & 5, 4 & 6 closed |
