Card Type	Multi I/O card
Chipset/Controller	Winbond
I/O Options	Game port, parallel ports, serial ports (2)
Maximum DRAM	N/A

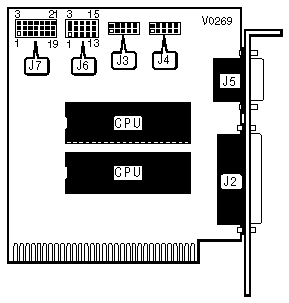

CONNECTIONS
Purpose	Location	Purpose	Location
Parallel port	J2	Serial port 2 (COM2/4)	J4
Serial port 1 (COM1/3)	J3	Game port	J5

SERIAL PORT 1 CONFIGURATION
COM		J6	J7
»	COM1 (3F8h)	Pins 1 & 2 closed	Pins 1 & 2, 4 & 5 closed
	COM3 (3E8h)	Pins 1 & 2 closed	Pins 2 & 3, 4 & 5 closed

SERIAL PORT 2 CONFIGURATION
COM		J6	J7
»	COM2 (2F8h)	Pins 5 & 6 closed	Pins 7&8, 10&11 closed
	COM4 (2E8h)	Pins 5 & 6 closed	Pins 8&9, 10&11 closed

PARALLEL PORT CONFIGURATION
LPT1		LPT2	J6	J7
»	Enabled	Disabled	Pins 14 & 15 closed	Pins 13 & 14, 16 & 17 closed
	Disabled	Enabled	Pins 14 & 15 closed	Pins 14 & 15, 16 & 17 closed

GAME PORT CONFIGURATION
Setting		J7
»	Enabled	Pins 19 & 20 closed
	DIsabled	Pins 20 & 21 closed

MISCELLANEOUS TECHNICAL NOTES

Serial port 1 uses IRQ4, serial port 2 uses IRQ3, parallel port uses IRQ7
