Category	Video
Video Types Supported	MGA
Video Processor	Unidentified
Highest Resolution Supported	720 x 348
Data Bus Type	8-bit ISA
Memory Type	Unidentified
Maximum Onboard Memory	Unidentified

CONNECTIONS

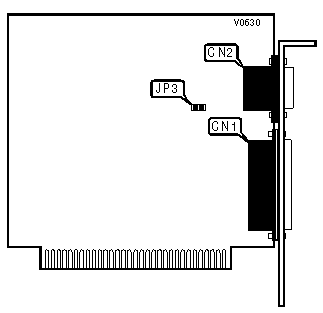

Purpose	Location	Purpose	Location
15-pin analog video port	CN1	25-pin parallel port	CN2

PRINTER PORT SELECT
Setting	JP3
Enabled	Open
Disabled	Closed
