Card Type	Parallel card
Chipset Controller	Unidentified
I/O Options	Parallel port
Maximum Dram	N/A

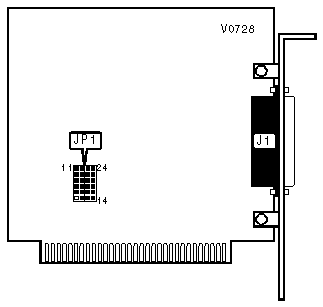

CONNECTIONS
Purpose	Location
Parallel port	J1

ADDRESS SELECT
Address	JP1
278h	Pins 15 & 16, 17 & 18, 21 & 22 closed
378h	Pins 15 & 16, 17 & 18, 23 & 24 closed
3BCh	Pins 13 & 14, 19 & 20, 23 & 24 closed

FACTORY CONFIGURED-DO NOT ALTER
Jumper	Setting
JP1 pins 1 & 2	Open
JP1 pins 3 & 4	Closed
JP1 pins 5 & 6	Open
JP1 pins 7 & 8	Closed
JP1 pins 9 & 10	Open
JP1 pins 11 & 12	Closed
