Card Type	Multi-I/O card
Chip Set	Unidentified
I/O Options	Game port, parallel port, serial ports (2)
Data Bus	8-bit ISA
Card Size	Half-length, full-height

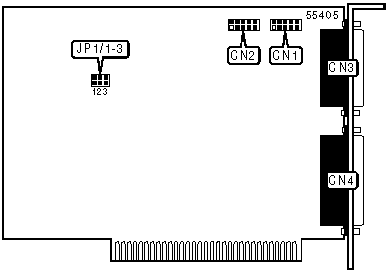

CONNECTIONS
Function	Label	Function	Label
Serial port 1	CN1	Game port	CN3
Serial port 2	CN2	Parallel port	CN4

USER CONFIGURABLE SETTINGS
Function	Label	Position
Disable serial port 1	JP1/1	Closed
Enable serial port 1	JP1/1	Open
Disable parallel port	JP1/2	Closed
Enable parallel port	JP1/2	Open
Disable serial port 2	JP1/3	Closed
Enable serial port 2	JP1/3	Open
