Processor	80286
Processor Speed	16/20MHz
Chip Set	VLSI
Max. Onboard DRAM	16MB
Cache	None
BIOS	AMI
Dimensions	220mm x 220mm
I/O Options	None
NPU Options	80287

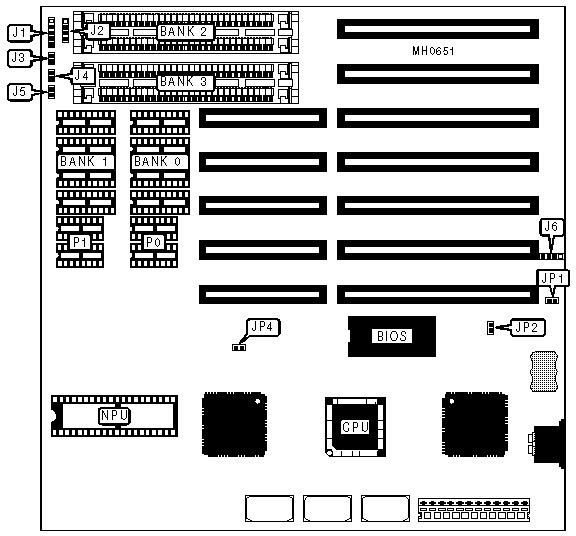

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED & keylock	J1	Reset switch	J4
Speaker	J2	Turbo switch	J5
Turbo LED	J3	External battery	J6

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Battery type select internal	JP1	Closed
	Battery type select external	JP1	Open
»	Monitor type select monochrome	JP2	Open
	Monitor type select color	JP2	Closed
»	Chipset type select VLSI 82C311L	JP4	Closed
	Chipset type select VLSI 82C310	JP4	Open

DRAM CONFIGURATION
Size	Bank 0	P-0	Bank 1	P-1	Bank 2	Bank 3
512KB	(4) 44256	(2) 41256	NONE	NONE	NONE	NONE
512KB	NONE	NONE	NONE	NONE	(2) 256K x 9	NONE
1MB	(4) 44256	(2) 41256	(4) 44256	(2) 41256	NONE	NONE
1MB	NONE	NONE	NONE	NONE	(2) 256K x 9	(2) 256K x 9
2MB	NONE	NONE	NONE	NONE	(2) 1M x 9	NONE
4MB	NONE	NONE	NONE	NONE	(2) 1M x 9	(2) 1M x 9
8MB	NONE	NONE	NONE	NONE	(2) 4M x 9	NONE
16MB	NONE	NONE	NONE	NONE	(2) 4M x 9	(2) 4M x 9
