Processor	80486SX/80486DX
Processor Speed	20/25/33MHz
Chip Set	OPTI
Max. Onboard DRAM	32MB
Cache	None
BIOS	AMI
Dimensions	220mm x 220mm
I/O Options	None
NPU Options	4167

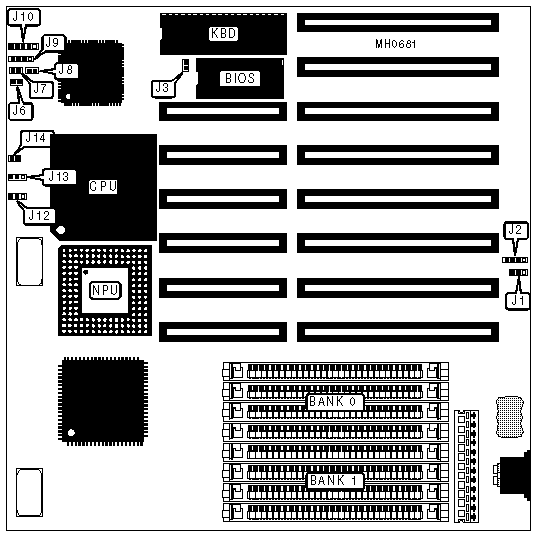

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J2	Turbo switch	J8
Reset switch	J6	Speaker	J9
Turbo LED	J7	Power LED & keylock	J10

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CMOS memory normal operation	J1	pins 2 & 3 closed
	CMOS memory clear	J1	pins 1 & 2 closed
»	Monitor type select color	J3	Closed
	Monitor type select monochrome	J3	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
5MB	(4) 256K x 9	(4) 1 M x 9
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
32MB	(4) 4M x 9	(4) 4M x 9

CPU TYPE CONFIGURATION
Type	J12	J13	J14
80486SX	Open	pins 2 & 3 closed	Open
80486DX	pins 1 & 2 closed	pins 1 & 2 closed	Closed
