ANIX TECHNOLOGY CORPORATION

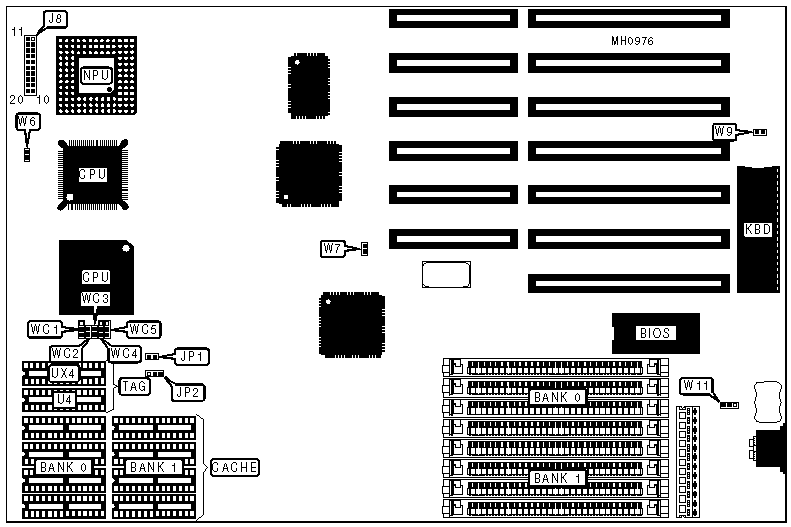

MST-310M
|
Processor |
80386DX |
|
Processor Speed |
33/40MHz |
|
Chip Set |
UMC |
|
Max. Onboard DRAM |
32MB |
|
Cache |
64/128/256KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
80387/3167 |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Speaker |
J8 pins 1-4 |
Turbo switch |
J8 pins 15-16 |
|
Power LED & keylock |
J8 pins 6-10 |
Turbo LED |
J8 /pins 18-19 |
|
Reset switch |
J8 pins 11-12 | ||
|
Note : CPU may be supplied as either surface mounted or socketed. | |||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
NPU type select 80387 |
W6 and W7 |
closed |
|
NPU type select 3167 |
W6 and W7 |
open | |
| » |
Monitor type select monochrome |
W9 |
open |
|
Monitor type select color |
W9 |
closed | |
| » |
CMOS memory normal operation |
W11 |
pins 2 & 3 closed |
|
CMOS memory clear |
W11 |
pins 1 & 2 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
TAG (U4) |
TAG (UX4) |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(1) 8K x 8 |
NONE |
|
128KB |
(4) 32K x 8 |
NONE |
(1) 8K x 8 |
NONE |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 8K x 8 |
(1) 8K x 8 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
NONE |
|
CACHE JUMPER CONFIGURATION | |||||||
|
Size |
JP1 |
JP2 |
WC1 |
WC2 |
WC3 |
WC4 |
WC5 |
|
64KB |
Closed |
1 & 2 |
2 & 3 |
Open |
Open |
1 & 2 |
1 & 2 |
|
128KB |
Open |
2 & 3 |
1 & 2 |
Open |
Closed |
2 & 3 |
1 & 2 |
|
256KB |
Open |
2 & 3 |
1 & 2 |
Closed |
Closed |
2 & 3 |
2 & 3 |
|
256KB |
Closed |
1 & 2 |
2 & 3 |
Closed |
Closed |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | |||||||
