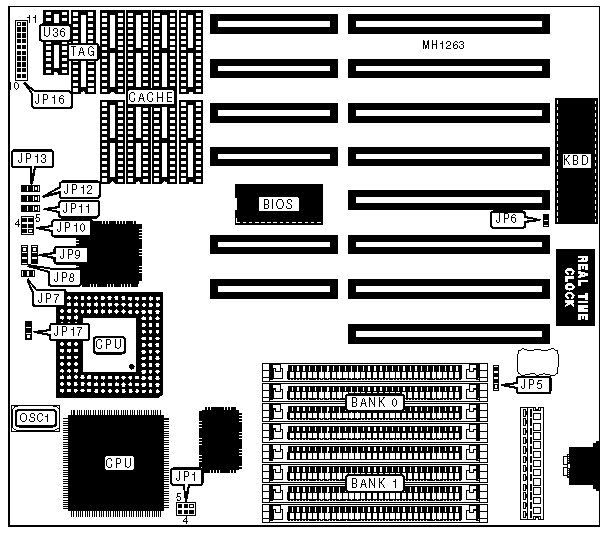

ACER, INC.
ISA486GXi MODEL I433A
|
Processor |
80486SX/80487SX/80486DX/ODP486SX/80486DX2 |
|
Processor Speed |
20/25/33/50(internal)/66(internal) |
|
Chip Set |
ALI |
|
Max. Onboard DRAM |
32MB |
|
SRAM Cache |
64/256KB |
|
BIOS |
Acer |
|
Dimensions |
220mm x 240mm |
|
I/O Options |
None |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
JP5 |
Turbo LED |
JP16/12 & 13 |
|
Power LED & keylock |
JP16/1 - 5 |
Turbo switch |
JP16/15 - 17 |
|
Speaker |
JP16/7 - 10 |
Reset switch |
JP16/19 & 20 |
|
SRAM CONFIGURATION | ||||||
|
Size |
Cache |
TAG |
(U36) |
JP10 |
JP11 |
JP12 |
|
64KB |
(8) 8K x 8 |
(1) 8K x 8 |
(1) 16K x 4 |
open |
pins 2 & 3 |
pins 1 & 2 |
|
64KB |
(8) 8K x 8 |
(1) 8K x 8 |
NONE |
open |
pins 1 & 2 |
pins 2 & 3 |
|
256KB |
(8) 32K x 8 |
(1) 32K x 8 |
(1) 16K x 4 |
closed |
pins 2 & 3 |
pins 1 & 2 |
|
256KB |
(8) 32K x 8 |
(1) 32K x 8 |
NONE |
closed |
pins 1 & 2 |
pins 2 & 3 |
|
Note:Pins designated should be in the closed position. JP10 is closed by shorting pins 1 & 2, 3 & 4, and 5 & 6. | ||||||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
CMOS memory normal operation |
JP6 |
open |
|
CMOS memory clear |
JP6 |
closed | |
|
System automatically detects CPU type installed |
JP7 |
closed | |
|
System detects only 486SX/DX CPUs |
JP7 |
open | |
| » |
Factory configured - do not alter |
JP8 |
pins 1 & 2 closed |
| » |
Factory configured - do not alter |
JP13 |
pins 1 & 2 closed |
| » |
Factory configured - do not alter |
JP17 |
open |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
2MB |
(4) 512K x 9 |
NONE |
|
4MB |
(4) 512K x 9 |
(4) 512K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 1M x 9 |
(4) 256K x 9 |
|
6MB |
(4) 512K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
17MB |
(4) 256K x 9 |
(4) 4M x 9 |
|
18MB |
(4) 512K x 9 |
(4) 4M x 9 |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CPU SPEED CONFIGURATION FOR CH9001 SYSTEM CLOCK CHIP | ||
|
CPU Speed |
JP1 |
JP9 |
|
20MHz |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
25MHz |
open |
pins 2 & 3 closed |
|
33MHz |
pins 3 & 4 closed |
pins 2 & 3 closed |
|
40MHz |
pins 1 & 2 and 5 & 6 closed |
pins 1 & 2 closed |
|
50MHz |
pins 5 & 6 closed |
pins 1 & 2 closed |
|
CPU SPEED CONFIGURATION FOR IMISC425 SYSTEM CLOCK CHIP | ||
|
CPU Speed |
JP1 |
JP9 |
|
20MHz |
pins 1 & 2 and 3 & 4 closed |
pins 2 & 3 closed |
|
25MHz |
pins 3 & 4 closed |
pins 2 & 3 closed |
|
33MHz |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
40MHz |
pins 1 & 2, 3 & 4, and 5 & 6 closed |
pins 1 & 2 closed |
|
50MHz |
pins 5 & 6 closed |
pins 1 & 2 closed |
