Processor	80386DX
Processor Speed	33MHz
Chip Set	ASIC
Max. Onboard DRAM	16MB (8MB on memory card)
Cache	64KB
BIOS	Award
Dimensions	330mm x 218mm
I/O Options	32-bit external memory card
NPU Options	80387DX/3167

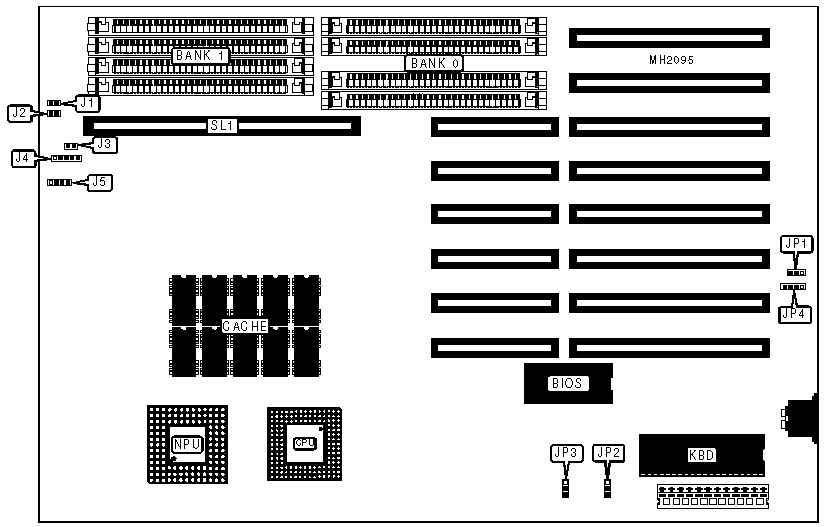

CONNECTIONS
Purpose	Location	Purpose	Location
Reset switch	J1	Power LED & keylock	J5
Turbo switch	J2	External battery	JP4
Turbo LED	J3	32-bit external memory card	SL1
Speaker	J4

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Battery type select external	JP1	pins 2 & 3 closed
	Battery type select internal	JP1	pins 1 & 2 closed
»	Monitor type select monochrome	JP2	pins 1 & 2 closed
	Monitor type select color	JP2	pins 2 & 3 closed
»	Power good signal detect from board	JP3	pins 1 & 2 closed
	Power good signal detect from power supply	JP3	pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
5MB	(4) 256K x 9	(4) 1M x 9
8MB	(4) 1M x 9	(4) 1M x 9

DRAM CONFIGURATION ( MEMORY BOARD)
Size	Bank 2	Bank 3
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
5MB	(4) 256K x 9	(4) 1M x 9
8MB	(4) 1M x 9	(4) 1M x 9

CACHE CONFIGURATION
Size	Bank 0
64KB	(10) 16K x 4
Note: Cache is factory installed and is not configurable.
