Processor	Pentium
Processor Speed	60/66MHz
Chip Set	Intel
Max. Onboard DRAM	192MB
Cache	256/512KB
BIOS	Award
Dimensions	330mm x 218mm
I/O Options	32-bit PCI slots (4)
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
Speaker	JP16	Reset switch	JP18
Power LED & keylock	JP17	32-bit PCI slots	PC1 - PC4

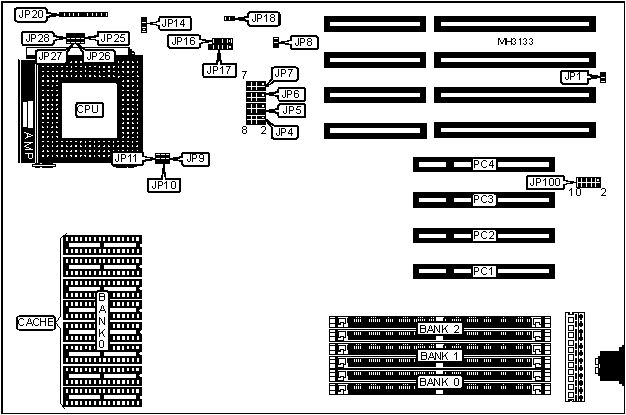

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	JP1	Open
»	CMOS memory normal operation	JP8	Open
	CMOS memory clear	JP8	Closed
»	Factory configured - do not alter	JP20	Open
»	Factory configured - do not alter	JP25	Closed
»	Factory configured - do not alter	JP26	Closed
»	Factory configured - do not alter	JP27	Closed
»	Factory configured - do not alter	JP28	Closed
Note: The actual size of JP20 is unidentified.

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
2MB	(2) 256K x 36	NONE	NONE
4MB	(2) 256K x 36	(2) 256K x 36	NONE
4MB	(2) 512K x 36	NONE	NONE
6MB	(2) 256K x 36	(2) 256K x 36	(2) 256K x 36
8MB	(2) 512K x 36	(2) 512K x 36	NONE
8MB	(2) 1M x 36	NONE	NONE
12MB	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36
12MB	(2) 1M x 36	(2) 512K x 36	NONE
16MB	(2) 1M x 36	(2) 512K x 36	(2) 512K x 36
16MB	(2) 1M x 36	(2) 1M x 36	NONE
16MB	(2) 2M x 36	NONE	NONE
20MB	(2) 1M x 36	(2) 1M x 36	(2) 512K x 36
20MB	(2) 2M x 36	(2) 512K x 36	NONE
24MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 512K x 36	(2) 512K x 36
24MB	(2) 2M x 36	(2) 1M x 36	NONE
32MB	(2) 4M x 36	NONE	NONE
32MB	(2) 2M x 36	(2) 2M x 36	NONE
32MB	(2) 2M x 36	(2) 1M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36	NONE
48MB	(2) 4M x 36	(2) 1M x 36	(2) 1M x 36
48MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
64MB	(2) 8M x 36	NONE	NONE
64MB	(2) 4M x 36	(2) 4M x 36	NONE
64MB	(2) 4M x 36	(2) 2M x 36	(2) 2M x 36
96MB	(2) 8M x 36	(2) 4M x 36	NONE
96MB	(2) 8M x 36	(2) 2M x 36	(2) 2M x 36
96MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36	NONE
128MB	(2) 8M x 36	(2) 4M x 36	(2) 4M x 36
192MB	(2) 8M x 36	(2) 8M x 36	(2) 8M x 36

CACHE CONFIGURATION
Size	Bank 0
256KB	(8) 32K x 8
512KB	(8) 64K x 8

CACHE JUMPER CONFIGURATION
Size	JP14
256KB	pins 1 & 2 closed
512KB	pins 2 & 3 closed

CPU SPEED CONFIGURATION
Speed	JP9	JP10	JP11
60MHz	Open	Closed	Open
66MHz	Closed	Open	Closed

PCI IRQ CONFIGURATION (INTA)
IRQ	JP7
IRQ10	pins 7 & 8 closed
IRQ11	pins 5 & 6 closed
IRQ14	pins 3 & 4 closed
IRQ15	pins 1 & 2 closed

PCI IRQ CONFIGURATION (INTB)
IRQ	JP6
IRQ10	pins 7 & 8 closed
IRQ11	pins 5 & 6 closed
IRQ14	pins 3 & 4 closed
IRQ15	pins 1 & 2 closed

PCI IRQ CONFIGURATION (INTC)
IRQ	JP5
IRQ10	pins 7 & 8 closed
IRQ11	pins 5 & 6 closed
IRQ14	pins 3 & 4 closed
IRQ15	pins 1 & 2 closed

PCI IRQ CONFIGURATION (INTD)
IRQ	JP4
IRQ10	pins 7 & 8 closed
IRQ11	pins 5 & 6 closed
IRQ14	pins 3 & 4 closed
IRQ15	pins 1 & 2 closed

PCI IRQ CONFIGURATION
IRQ	JP100 pin used
IRQ6	1
IRQ5	2
IRQ7	3
IRQ14	4
IRQ15	5
IRQ10	6
IRQ3	7
IRQ4	8
IRQ11	9
IRQ12	10
Note: A single wire from the controller card is installed on the proper IRQ setting. If this table is used, make sure corresponding jumpers JP4 - JP7 are open.
