Processor	80386
Processor Speed	25MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	8MB (32MB on external memory cards)
Maximum Video Memory	None
Cache	64KB
BIOS	Unidentified
Dimensions	355mm x 304mm
I/O Options	External memory cards (2), parallel port, PS/2 mouse port, serial ports (2)
NPU Options	80387/3167

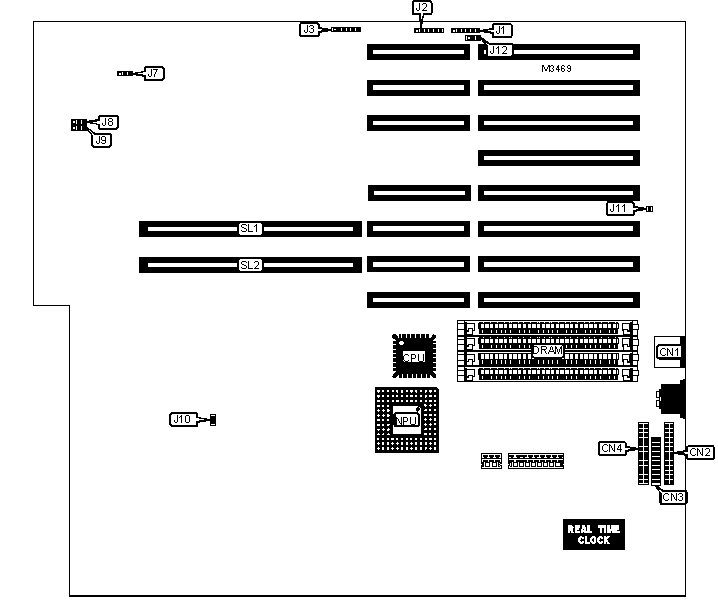

CONNECTIONS
Purpose	Location	Purpose	Location
PS/2 mouse port	CN1	Serial port	CN4
Parallel port	CN2	Remote reset switch	J11
Serial port	CN3	External memory cards	SL1 & SL2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Monitor type select color	J3	Pins 1 & 2 closed
	Monitor type select monochrome	J3	Pins 2 & 3 closed
»	Password normal operation	J3	Pins 4 & 5 closed
	Password clear	J3	Pins 5 & 6 closed
	BIOS type select 64KB	J7	Pins 2 & 3 closed
	BIOS type select 128KB	J7	Pins 1 & 2 closed
»	Factory configured - do not alter	J10	Closed
»	Printer acknowledge signal edge trailing edge	J12	Pins 1 & 2 closed
	Printer acknowledge signal edge leading edge	J12	Pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
4MB	(2) 1M x 9	(2) 1M x 9
8MB	(2) 4M x 9	None
Note: The location of the banks is unidentified.

DRAM JUMPER CONFIGURATION
Size	J8	J9
4MB	Pins 2 & 3 closed	Pins 1 & 2 closed
8MB	Pins 2 & 3 closed	Pins 2 & 3 closed

CACHE CONFIGURATION

Note: The location of the 64KB cache is unidentified.

PARALLEL PORT ADDRESS SELECTION
Setting	J1
LPT1	Pins 1 & 2, 5 & 6 closed
LPT2	Pins 2 & 3, 4 & 5 closed
Disabled	Pins 1 & 2, 4 & 5 closed

SERIAL PORT 1 ADDRESS SELECTION
Setting	J2
COM1 (3F8h)	Pins 5 & 6 closed
Disabled	Pins 4 & 5 closed

SERIAL PORT 2 ADDRESS SELECTION
Setting	J2
COM2 (2F8h)	Pins 2 & 3 closed
Disabled	Pins 1 & 2 closed

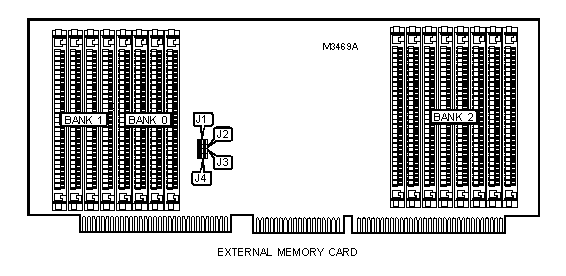

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
4MB	(4) 1M x 9	None	None
8MB	(4) 1M x 9	(4) 1M x 9	None
16MB	(4) 1M x 9	(4) 1M x 9	(8) 1M x 9

DRAM JUMPER CONFIGURATION
Size	J1	J2	J3	J4
4MB	Closed	Open	Open	Closed
8MB	Open	Closed	Closed	Open
16MB	Closed	Closed	Open	Open
