Processor	Pentium Pro
Processor Speed	150/180/200MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	1GB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB (located on Pentium Pro CPU)
BIOS	AMI
Dimensions	305mm x 305mm
I/O Options	32-bit PCI slots (5), floppy drive interface, green PC connector, Ultra Wide SCSI interface, Fast SCSI interface, PS/2 mouse interface, parallel port, serial ports (2), IR connector, VRM connector, ATX power connector, RAID slot
NPU Options	None

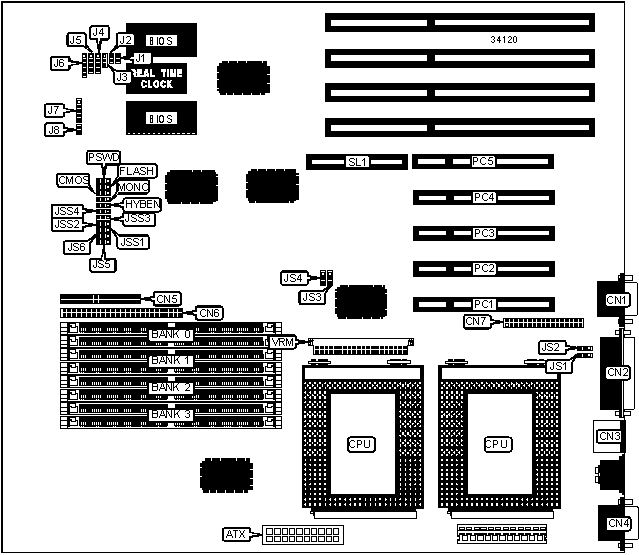

CONNECTIONS
Purpose	Location	Purpose	Location
ATX power connector	ATX	SCSI interface LED	J4
Serial port 2	CN1	Speaker	J5
Parallel port	CN2	Power LED & keylock	J6
PS/2 mouse port	CN3	IR connector	J7
Serial port 1	CN4	Soft off power supply	J8
Ultra Wide SCSI interface	CN5	Chassis fan power	JS1
Fast SCSI interface	CN6	Chassis fan power	JS2
Floppy drive interface	CN7	32-bit PCI slots	PC1 – PC5
Reset switch	J1	RAID slot	SL1
Green PC connector	J2	VRM connector	VRM
Turbo LED	J3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	SCSI high byte termination select always	HYBEN	Pins 2 & 3 closed
	SCSI high byte termination select auto	HYBEN	Pins 1 & 2 closed
	Flash BIOS voltage select 12v	FLASH	Pins 1 & 2 closed
	Flash BIOS voltage select 5v	FLASH	Pins 2 & 3 closed
»	CMOS memory normal operation	CMOS	Pins 1 & 2 closed
	CMOS memory clear	CMOS	Pins 2 & 3 closed
»	Monitor type select color	MONO	Pins 1 & 2 closed
	Monitor type select monochrome	MONO	Pins 2 & 3 closed
»	Password normal operation	PSWD	Pins 1 & 2 closed
	Password clear	PSWD	Pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
8MB	(2) 1M x 36	None	None	None
16MB	(2) 1M x 36	(2) 1M x 36	None	None
16MB	(2) 2M x 36	None	None	None
24MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36	None
32MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
32MB	(2) 2M x 36	(2) 2M x 36	None	None
32MB	(2) 4M x 36	None	None	None
48MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36	None
64MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
64MB	(2) 4M x 36	(2) 4M x 36	None	None
64MB	(2) 8M x 36	None	None	None
96MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36	None
128MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36	None	None

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3
128MB	(2) 16M x 36	None	None	None
192MB	(2) 8M x 36	(2) 8M x 36	(2) 8M x 36	None
256MB	(2) 8M x 36	(2) 8M x 36	(2) 8M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36	None	None
256MB	(2) 32M x 36	None	None	None
384MB	(2) 16M x 36	(2) 16M x 36	(2) 16M x 36	None
512MB	(2) 16M x 36	(2) 16M x 36	(2) 16M x 36	(2) 16M x 36
512MB	(2) 32M x 36	(2) 32M x 36	None	None
768MB	(2) 32M x 36	(2) 32M x 36	(2) 32M x 36	None
1GB	(2) 32M x 36	(2) 32M x 36	(2) 32M x 36	(2) 32M x 36
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	JS3	JS4	JS5	JS6
150MHz	60MHz	2.5x	1 & 2	1 & 2	1 & 2	1 & 2
180MHz	60MHz	3x	1 & 2	1 & 2	1 & 2	1 & 2
200MHz	66MHz	3x	2 & 3	2 & 3	2 & 3	2 & 3
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CON’T)
CPU speed	Clock speed	Multiplier	JSS1	JSS2	JSS3	JSS4
150MHz	60MHz	2.5x	1 & 2	1 & 2	1 & 2	2 & 3
180MHz	60MHz	3x	1 & 2	1 & 2	2 & 3	1 & 2
200MHz	66MHz	3x	1 & 2	1 & 2	2 & 3	1 & 2
Note: Pins designated should be in the closed position.
