Processor	Pentium
Processor Speed	90/100MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	512MB
Maximum Video Memory	None
Cache	256/512KB
BIOS	AMI
Dimensions	332mm x 221mm
I/O Options	32-bit PCI slots (3), floppy drive interface, SCSI-2 interface, Wide SCSI-2 interface, parallel port, serial ports (2)
NPU Options	None

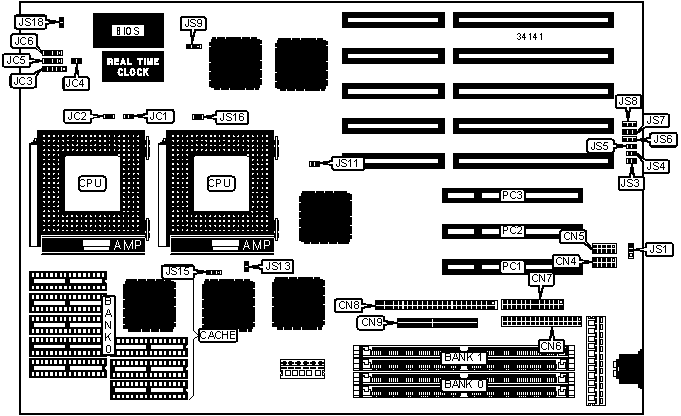

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port 1	CN4	Turbo LED	JC2
Serial port 2	CN5	Power LED & keylock	JC3
Floppy drive interface	CN6	Turbo switch	JC4
Parallel port	CN7	SCSI interface LED	JC5
SCSI-2 interface	CN8	Speaker	JC6
Wide SCSI-2 interface	CN9	32-bit PCI slots	PC1 - PC3
Reset switch	JC1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	JS3	Open
	CMOS memory clear	JS3	Closed
»	Parallel port IRQ select IRQ7	JS6	Pins 2 & 3 closed
	Parallel port IRQ select IRQ5	JS6	Pins 1 & 2 closed
»	Flash BIOS normal operation	JS9	Pins 2 & 3 closed
	Flash BIOS programming mode	JS9	Pins 1 & 2 closed
»	Monitor type select VGA/EGA/monochrome	JS16	Closed
	Monitor type select CGA	JS16	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
2MB	(2) 256K x 36	None
4MB	(2) 256K x 36	(2) 256K x 36
4MB	(2) 512K x 36	None
6MB	(2) 256K x 36	(2) 512K x 36
8MB	(2) 512K x 36	(2) 512K x 36
8MB	(2) 1M x 36	None
10MB	(2) 256K x 36	(2) 1M x 36
12MB	(2) 512K x 36	(2) 1M x 36
16MB	(2) 1M x 36	(2) 1M x 36
16MB	(2) 2M x 36	None
18MB	(2) 256K x 36	(2) 2M x 36
20MB	(2) 512K x 36	(2) 2M x 36
24MB	(2) 1M x 36	(2) 2M x 36
32MB	(2) 2M x 36	(2) 2M x 36
32MB	(2) 4M x 36	None
34MB	(2) 256K x 36	(2) 4M x 36
36MB	(2) 512K x 36	(2) 4M x 36
40MB	(2) 1M x 36	(2) 4M x 36
48MB	(2) 2M x 36	(2) 4M x 36

DRAM CONFIGURATION (CON'T)
Size	Bank 0	Bank 1
64MB	(2) 4M x 36	(2) 4M x 36
64MB	(2) 8M x 36	None
66MB	(2) 256K x 36	(2) 8M x 36
68MB	(2) 512K x 36	(2) 8M x 36
72MB	(2) 1M x 36	(2) 8M x 36
80MB	(2) 2M x 36	(2) 8M x 36
96MB	(2) 4M x 36	(2) 8M x 36
128MB	(2) 8M x 36	(2) 8M x 36
128MB	(2) 16M x 36	None
144MB	(2) 16M x 36	(2) 1M x 36
192MB	(2) 16M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36
256MB	(2) 32M x 36	None
512MB	(2) 32M x 36	(2) 32M x 36

CACHE CONFIGURATION
Size	Bank 0
256KB	(8) 32K x 8
512KB	(8) 64K x 8

CACHE JUMPER CONFIGURATION
Size	JS15
256KB	Pins 1 & 2 closed
512KB	Pins 2 & 3 closed

CPU SPEED SELECTION
Speed	JS18
90MHz	Open
100MHz	Closed

CPU TYPE SELECTION
Type		JS13
»	Single CPU installed	Closed
	Dual CPUs installed	Open

DMA CHANNEL SELECTION
Channel		JS5	JS7	JS8
»	Normal	Open	Open	Open
	1	Closed	Pins 1 & 2 closed	Pins 1 & 2 closed
	3	Closed	Pins 2 & 3 closed	Pins 2 & 3 closed

FLOPPY DRIVE SELECTION
Setting		JS1	JS4
»	Normal	Open	Open
	Enhanced	Pins 2 & 3 closed	Closed

SCSI SELECTION
Setting		JS11
»	8-bit Fast SCSI & 16-bit Fast Wide SCSI	Closed
	8-bit Fast SCSI only	Open
	16-bit Fast Wide SCSI only	Closed
