Processor	None
Processor Speed	None
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	None
Maximum Video Memory	None
Cache	None
BIOS	Unidentified
Dimensions	220mm x 220mm
I/O Options	Ethernet 10BaseT connector, AUI connector, floppy drive interface, parallel ports (2), X-bus connectors (2), I/O expansion slots (4)
NPU Options	None

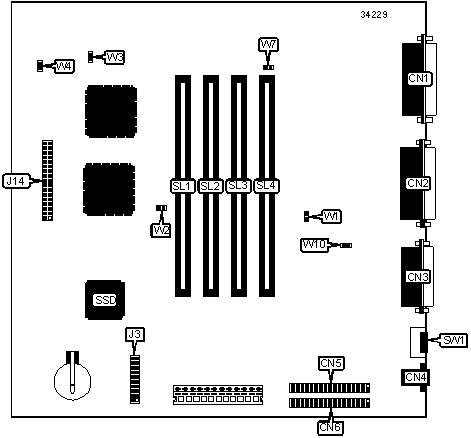

CONNECTIONS
Purpose	Location	Purpose	Location
Parallel port 1	CN1	X- bus connector	CN6
Parallel port 2	CN2	Front panel connector	J3
AUI connector	CN3	Floppy drive interface (AM-219)	J14
Ethernet 10BaseT connector	CN4	I/O expansion slots	SL1 – SL4
X- bus connector	CN5	Speaker	W4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	SW1/1	Unidentified
»	Factory configured - do not alter	SW1/2	Unidentified
»	Factory configured - do not alter	SW1/3	Unidentified
»	Factory configured - do not alter	SW1/4	Unidentified
»	Factory configured - do not alter	W1	Closed
»	Factory configured - do not alter	W2	Closed
»	Factory configured - do not alter	W3	Closed
	Remote reset disabled	W7	Open
	Remote reset enabled	W7	Closed
	Ethernet type select AUI	W10	Open
	Ethernet type select 10BaseT	W10	Closed
