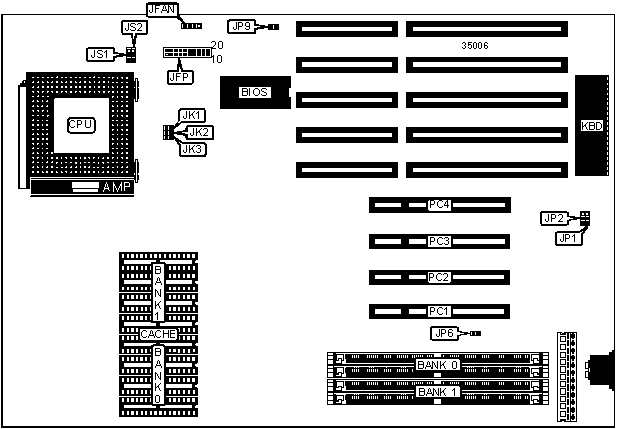

ACHME COMPUTER, INC.
MS-5106
|
Processor |
Pentium |
|
Processor Speed |
90/100MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
128MB |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI slots (4) |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Chassis fan power |
JFAN |
Turbo switch |
JFP pins 15 - 17 |
|
Power LED & keylock |
JFP pins 1 - 5 |
Reset switch |
JFP pins 19 - 20 |
|
Speaker |
JFP pins 6 - 10 |
32-bit PCI slots |
PC1 - PC4 |
|
Turbo LED |
JFP pins 12 - 13 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
PCI card type select any card installed |
JP6 |
pins 1 & 2 closed |
|
PCI card type select MS-3805 card installed |
JP6 |
pins 2 & 3 closed | |
|
» |
CMOS memory normal operation |
JP9 |
Open |
|
CMOS memory clear |
JP9 |
Closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
(2) 256K x 36 |
NONE |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
|
4MB |
(2) 512K x 36 |
NONE |
|
6MB |
(2) 256K x 36 |
(2) 512K x 36 |
|
6MB |
(2) 512K x 36 |
(2) 256K x 36 |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
|
10MB |
(2) 256K x 36 |
(2) 1M x 36 |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
|
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
|
12MB |
(2) 1M x 36 |
(2) 512K x 36 |
|
16MB |
(2) 2M x 36 |
NONE |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
18MB |
(2) 256K x 36 |
(2) 2M x 36 |
|
18MB |
(2) 2M x 36 |
(2) 256K x 36 |
|
20MB |
(2) 512K x 36 |
(2) 2M x 36 |
|
20MB |
(2) 2M x 36 |
(2) 512K x 36 |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
NONE |
|
34MB |
(2) 256K x 36 |
(2) 4M x 36 |
|
34MB |
(2) 4M x 36 |
(2) 256K x 36 |
|
36MB |
(2) 512K x 36 |
(2) 4M x 36 |
|
36MB |
(2) 4M x 36 |
(2) 512K x 36 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
NONE |
|
66MB |
(2) 256K x 36 |
(2) 8M x 36 |
|
66MB |
(2) 8M x 36 |
(2) 256K x 36 |
|
68MB |
(2) 512K x 36 |
(2) 8M x 36 |
|
68MB |
(2) 8M x 36 |
(2) 512K x 36 |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
|
DRAM CONFIGURATION (CON’T) | ||
|
Size |
Bank 0 |
Bank 1 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
|
512KB |
(4) 64K x 8 |
(4) 64K x 8 |
|
CACHE JUMPER CONFIGURATION | ||
|
Size |
JS1 |
JS2 |
|
256KB |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
512KB |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
CPU SPEED CONFIGURATION | |||
|
Speed |
JK1 |
JK2 |
JK3 |
|
90MHz |
Closed |
Open |
Open |
|
100MHz |
Closed |
Closed |
Open |
|
PCI INTERRUPT CONFIGURATION (IRQ14) | |
|
Setting |
JP1 |
|
Edge rising |
pins 1 & 2 closed |
|
Edge falling |
pins 2 & 3 closed |
|
PCI INTERRUPT CONFIGURATION (IRQ15) | |
|
Setting |
JP2 |
|
Edge rising |
pins 1 & 2 closed |
|
Edge falling |
pins 2 & 3 closed |
