Processor	CX M1/AM K5/Pentium
Processor Speed	75/90/100/120/133/150/166/200MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	128MB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB
BIOS	Unidentified
Dimensions	305mm x 235mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 mouse interface, serial ports (2), IR connector, USB connector, ATX power connector
NPU Options	None

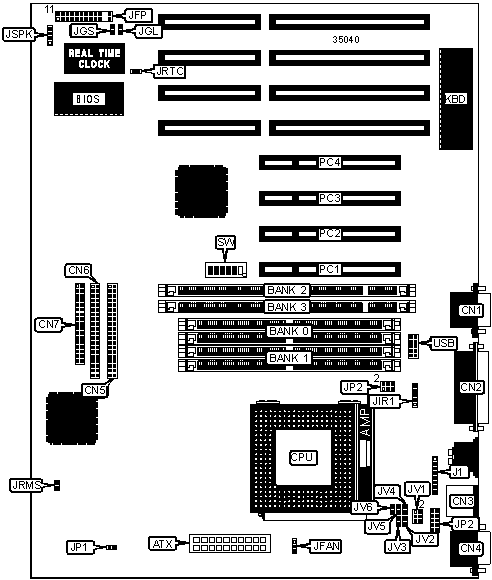

CONNECTIONS
Purpose	Location	Purpose	Location
ATX power connector	ATX	Speaker	JFP pins 7 - 10
Serial port 2	CN1	Turbo LED	JFP pins 12 & 13
Parallel port	CN2	Reset switch	JFP pins 19 & 20
PS/2 mouse port	CN3	IDE interface LED	JFP pins 21 & 22
Serial port 1	CN4	IR connector	JIR1
IDE interface 1	CN5	Green PC LED	JGL
IDE interface 2	CN6	Green PC connector	JGS
Floppy drive interface	CN7	Remote power switch	JRMS
Auxiliary keyboard connector	J1 pins 1 – 4	Speaker	JSPK
PS/2 mouse interface	J1 pins 5 - 8	32-bit PCI slots	PC1 – PC4
Chassis fan power	JFAN	USB port	USB
Power LED & keylock	JFP pins 1 - 5

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	JP1	Unidentified
»	Factory configured - do not alter	JP2	Unidentified
»	Factory configured - do not alter	JRTC	Unidentified

DIMM/DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
8MB	(2) 1M x 36	None	None	None
8MB	None	(2) 1M x 36	None	None
8MB	None	None	(1) 1M x 64	None
16MB	(2) 2M x 36	None	None	None
16MB	None	None	(1) 2M x 64	None
16MB	(2) 1M x 36	(2) 1M x 36	None	None
16MB	(2) 1M x 36	None	None	(1) 1M x 64
16MB	None	None	(1) 1M x 64	(1) 1M x 64
24MB	(2) 1M x 36	None	(1) 1M x 64	(1) 1M x 64
24MB	None	(2) 2M x 36	(1) 1M x 64	None
32MB	(2) 4M x 36	None	None	None
32MB	None	None	(1) 4M x 64	None
40MB	(2) 4M x 36	(2) 1M x 36	None	None
40MB	(2) 4M x 36	None	None	(1) 1M x 64
48MB	(2) 2M x 36	None	None	(1) 4M x 64
48MB	(2) 4M x 36	(2) 2M x 36	None	None
48MB	(2) 4M x 36	None	None	(1) 2M x 64
64MB	(2) 8M x 36	None	None	None
64MB	None	None	None	(1) 8M x 64
64MB	(2) 4M x 36	(2) 4M x 36	None	None

DIMM/DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
64MB	(2) 4M x 36	None	None	(1) 4M x 64
64MB	None	None	(1) 4M x 64	(1) 4M x 64
64MB	None	(2) 4M x 36	(1) 4M x 64	None
72MB	(2) 8M x 36	(2) 1M x 36	None	None
72MB	(2) 8M x 36	None	None	(1) 1M x 64
80MB	(2) 8M x 36	(2) 2M x 36	None	None
96MB	(2) 4M x 36	None	None	(1) 8M x 64
96MB	(2) 8M x 36	(2) 4M x 36	None	None
96MB	(2) 8M x 36	None	None	(1) 4M x 64
96MB	None	(2) 8M x 36	(1) 4M x 64	None
128MB	None	None	(1) 8M x 64	(1) 8M x 64
128MB	(2) 8M x 36	(2) 8M x 36	None	None
Note: Board accepts EDO memory.

DIMM VOLTAGE CONFIGURATION
Voltage	JP2
3.3v	Pins 1 & 3, 2 & 4 closed
5v	Pins 3 & 5, 4 & 6 closed

CACHE CONFIGURATION

Note: The location of the banks is unidentified. The size of the chips is unidentified.

CPU SPEED SELECTION (CYRIX)
CPU speed	Clock speed	Multiplier	SW/1	SW/2	SW/3	SW/4	SW/5	SW/6
120MHz	50MHz	2x	On	Off	On	On	Off	Off
133MHz	55MHz	2x	On	Off	Off	On	Off	Off
150MHz	60MHz	2x	On	Off	On	Off	Off	Off
166MHz	66MHz	2x	On	Off	Off	Off	Off	Off

CPU SPEED SELECTION (AMD)
CPU speed	Clock speed	Multiplier	SW/1	SW/2	SW/3	SW/4	SW/5	SW/6
75MHz	50MHz	1.5x	Off	Off	On	On	Off	Off
90MHz	60MHz	1.5x	Off	Off	On	Off	Off	Off
100MHz	66MHz	1.5x	Off	Off	Off	Off	Off	Off
120MHz	60MHz	2x	On	Off	On	Off	Off	Off
133MHz	66MHz	2x	On	Off	Off	Off	Off	Off
150MHz	60MHz	2.5x	On	On	On	Off	Off	Off
166MHz	66MHz	2.5x	On	On	Off	Off	Off	Off

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	SW/1	SW/2	SW/3	SW/4	SW/5	SW/6
75MHz	50MHz	1.5x	Off	Off	On	On	Off	Off
90MHz	60MHz	1.5x	Off	Off	On	Off	Off	Off
100MHz	66MHz	1.5x	Off	Off	Off	Off	Off	Off
120MHz	60MHz	2x	On	Off	On	Off	Off	Off
133MHz	66MHz	2x	On	Off	Off	Off	Off	Off
150MHz	60MHz	2.5x	On	On	On	Off	Off	Off
166MHz	66MHz	2.5x	On	On	Off	Off	Off	Off
200MHz	66MHz	3x	Off	On	Off	Off	Off	Off

CPU VOLTAGE SELECTION (SINGLE)
Voltage	JV1	JV2	JV3	JV4	JV5	JV6
3.38v	3 & 5, 4 & 6	Closed	Open	Open	Open	Open
3.52v	3 & 5, 4 & 6	Open	Closed	Open	Open	Open
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (DUAL)
Voltage	V core	JV1	JV2	JV3	JV4	JV5	JV6
3.3v	2.8v	1 & 3, 2 & 4	Open	Open	Open	Closed	Open
Note: Pins designated should be in the closed position.
