Processor	80386DX
Processor Speed	16MHz
Chip Set	Intel
Max. Onboard DRAM	6MB (on system memory card)
SRAM Cache	None
BIOS	AMI/Dell
Dimensions	330mm x 218mm
I/O Options	32-bit external memory card
NPU Options	80287-8

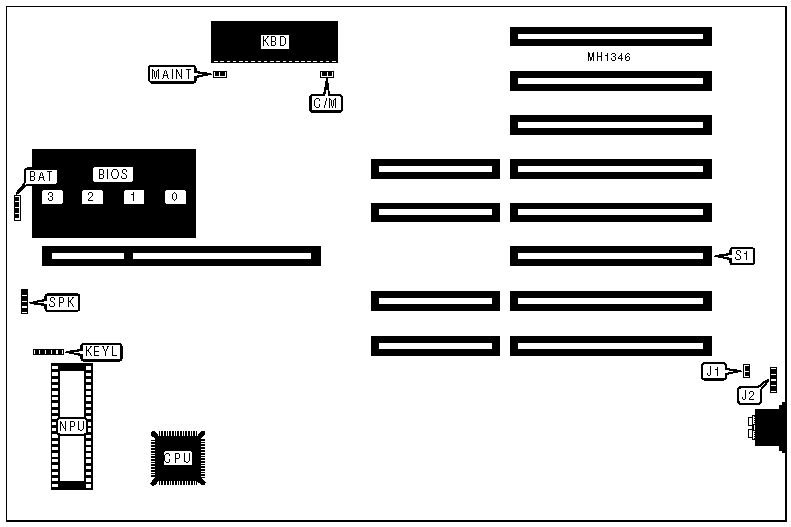

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	BAT	32-bit external memory card	S1
Power LED & keylock	KEYL	Speaker	SPK

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select color	C/M	closed
	Monitor type select monochrome	C/M	open
»	Factory configured - do not alter	J1	open
»	Factory configured - do not alter	J2	open
»	CMOS memory normal operation	MAINT	open
	CMOS memory clear	MAINT	closed

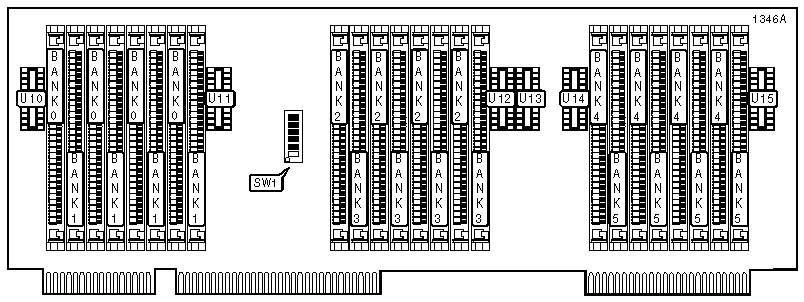

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3	Bank 4	Bank 5
1MB	(4) 256K x 9	NONE	NONE	NONE	NONE	NONE
2MB	(4) 256K x 9	(4) 256K x 9	NONE	NONE	NONE	NONE
3MB	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	NONE	NONE	NONE
4MB	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	NONE	NONE
5MB	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	NONE
6MB	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9
Note:This card uses 100ns CMOS static memory SIMMs.

SW1 CONFIGURATION
Size	switch 1	switch 2	switch 3	switch 4	switch 5	switch 6
1MB	closed	open	open	open	open	open
2MB	closed	closed	open	open	open	open
3MB	closed	closed	closed	open	open	open
4MB	closed	closed	closed	closed	open	open
5MB	closed	closed	closed	closed	closed	open
6MB	closed	closed	closed	closed	closed	closed

PAL CHIP CONFIGURATION
Size	U10	U11	U12	U13	U14	U15
1MB	installed	not installed	not installed	not installed	not installed	not installed
2MB	installed	installed	not installed	not installed	not installed	not installed
3MB	installed	installed	installed	not installed	not installed	not installed
4MB	installed	installed	installed	installed	not installed	not installed
5MB	installed	installed	installed	installed	installed	not installed
6MB	installed	installed	installed	installed	installed	installed
