PREDATOR II

DEICO ELECTRONICS, INC.

PREDATOR II

Processor	80386DX/CX486DLC/80486SX/80487SX/80486DX/ODP486SX/80486DX2
Processor Speed	20/25/33/50(internal)/40/50/66(internal)MHz
Chip Set	Symphony
Max. onboard DRAM	64MB
SRAM Cache	128/512KB
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	Floppy drive interface, IDE interface, parallel port, PS/2 mouse port serial ports (2), VGA feature connector, VGA port
NPU Options	80387DX

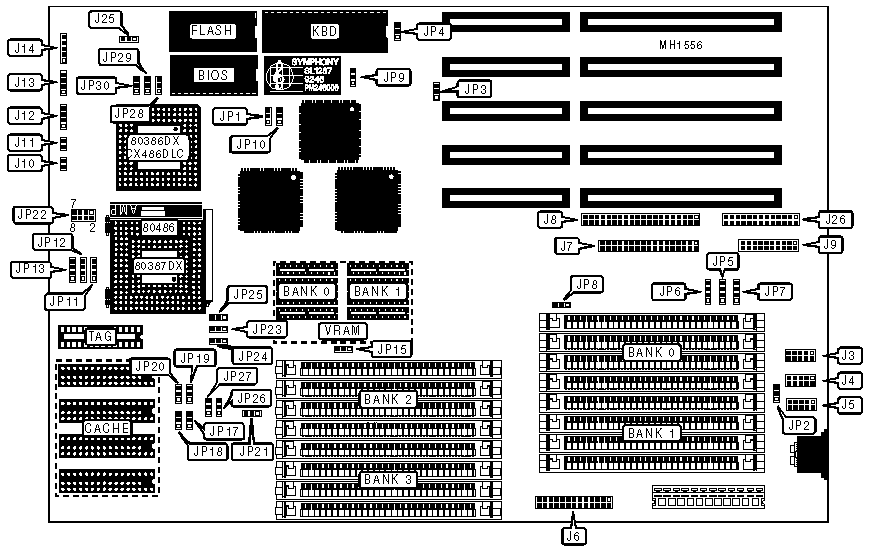

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	PS/2 mouse port enabled (IRQ12)	JP1	pins 1 & 2 closed
	PS/2 mouse port disabled	JP1	pins 2 & 3 closed
»	Factory configured - do not alter	JP2	pins 2 & 3 closed
»	Flash BIOS program mode enabled	JP3	pins 1 & 2 closed
	Flash BIOS program mode disabled	JP3	pins 2 & 3 closed
»	BIOS select flash BIOS	JP4	pins 1 & 2 closed
	BIOS select standard BIOS	JP4	pins 2 & 3 closed
»	All main board I/O ports enabled	JP8	pins 1 & 2 closed
	All main board I/O ports disabled	JP8	pins 2 & 3 closed
»	Monitor type select color	JP9	pins 1 & 2 closed
	Monitor type select monochrome	JP9	pins 2 & 3 closed
»	CMOS memory normal operation	JP10	pins 1 & 2 closed
	CMOS memory clear	JP10	pins 2 & 3 closed
»	Onboard EGA disabled	JP21	pins 2 & 3 closed
	Onboard EGA enabled	JP21	pins 1 & 2 closed
»	Onboard VGA enabled	JP22	pins 1 & 2 closed
	Onboard VGA disabled	JP22	pins 2 & 3 closed
Note: J8 does not disable the PS/2 mouse or the onboard VGA port.

SERIAL PORT 1 IRQ CONFIGURATION
Address	COM Assignment	IRQ	JP5
Disabled	N/A	N/A	pins 3 & 4 closed
3F8	COM1	4	pins 1 & 2 closed
3F8	COM1	5	pins 2 & 3 closed
3E8	COM3	4	pins 1 & 2 closed
3E8	COM3	5	pins 2 & 3 closed
Note: If "AUTO" I/O port management is enabled in BIOS, serial port COM assignments will be auto configuring. If "MANUAL" I/O port management is enabled, COM assignments will follow the table above.

SERIAL PORT 2 IRQ CONFIGURATION
Address	COM Assignment	IRQ	JP6
Disabled	N/A	N/A	pins 3 & 4 closed
2F8	COM2	3	pins 1 & 2 closed
2F8	COM2	9	pins 2 & 3 closed
2E8	COM4	3	pins 1 & 2 closed
2E8	COM4	9	pins 2 & 3 closed
Note: If "AUTO" I/O port management is enabled in BIOS, serial port COM assignments will be auto-configuring. If "MANUAL" I/O port management is enabled, COM assignments will follow the table above.

PARALLEL PORT IRQ CONFIGURATION
Address	LPT Assignment	IRQ	JP7
Disabled	N/A	N/A	pins 3 & 4 closed
378	LPT1	7	pins 1 & 2 closed
378	LPT1	5	pins 2 & 3 closed
278	LPT2	7	pins 1 & 2 closed
278	LPT2	5	pins 2 & 3 closed
3BC	LPT3	7	pins 1 & 2 closed
3BC	LPT3	5	pins 2 & 3 closed

CPU TYPE CONFIGURATION
Jumper	80386DX	CX486DLC	80486SX	80487SX	ODP486SX	80486DX	80486DX2
JP11	pins 1 & 2	pins 1 & 2	pins 3 & 4	pins 2 & 3	pins 2 & 3	pins 1 & 2	pins 1 & 2
JP12	pins 1 & 2	pins 1 & 2	pins 3 & 4	pins 2 & 3	pins 2 & 3	pins 1 & 2	pins 1 & 2
JP13	pins 1 & 2	pins 1 & 2	pins 3 & 4	pins 2 & 3	pins 2 & 3	pins 1 & 2	pins 1 & 2
JP14	pins 1 & 2	pins 1 & 2	pins 2 & 3	pins 2 & 3	pins 2 & 3	pins 2 & 3	pins 2 & 3
JP15	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 2 & 3	pins 1 & 2
JP23	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 2 & 3	pins 1 & 2
JP24	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 2 & 3	pins 1 & 2
JP25	pins 1 & 2	pins 1 & 2	pins 2 & 3	pins 2 & 3	pins 2 & 3	pins 2 & 3	pins 2 & 3
JP26	pins 1 & 2	pins 1 & 2	pins 2 & 3	pins 2 & 3	pins 2 & 3	pins 2 & 3	pins 2 & 3
JP27	pins 1 & 2	pins 1 & 2	pins 2 & 3	pins 2 & 3	pins 2 & 3	pins 2 & 3	pins 2 & 3
JP28	pins 1 & 2	pins 2 & 3	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 1 & 2
JP29	pins 1 & 2	pins 2 & 3	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 1 & 2
JP30	pins 1 & 2	pins 2 & 3	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 1 & 2
Notes: Pins designated should be in the closed position. Location of jumper JP14 is unknown. Later versions of the board lack JP14 altogether.
