DTK COMPUTER, INC.
PTM-1000V2, ZeroAT 12
|
Processor |
80286 |
|
Processor Speed |
6/10MHz |
|
Chip Set |
None |
|
Max. onboard DRAM |
1MB |
|
Cache |
None |
|
BIOS |
DTK |
|
Dimensions |
220mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
80287 |
|

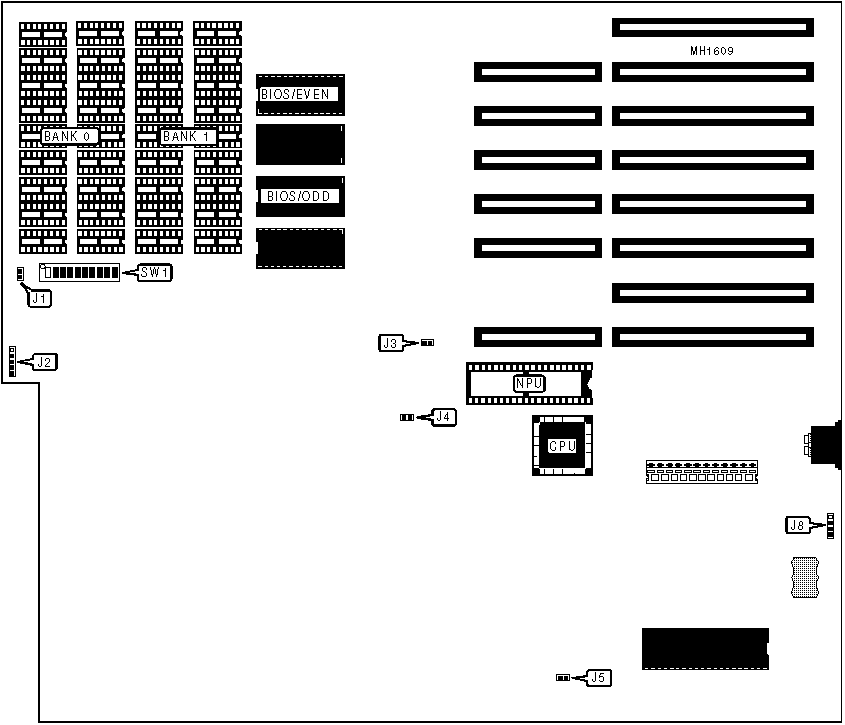

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Speaker |
J1 |
Turbo LED |
J4 |
|
Power LED & keylock |
J2 |
Turbo switch |
J5 |
|
Reset switch |
J3 |
External battery |
J8 |
|
Note:Turbo speed can also be activated by pressing Ctrl and Alt simultaneously. | |||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Switch |
Position | |
| » |
Base memory select 640KB/ext memory = 384KB |
SW1/2 |
On |
|
Base memory select 512KB/ext memory = 512KB |
SW1/2 |
Off | |
| » |
Monitor type select color |
SW1/6 |
On |
|
Monitor type select monochrome |
SW1/6 |
Off | |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
SW1/3 |
|
512KB |
(18) 41256 |
None |
N/A |
|
640KB |
(18) 41256 |
(18) 4164 |
On |
|
1MB |
(18) 41256 |
(18) 41256 |
Off |
|
DRAM WAIT STATE CONFIGURATION | ||||
|
Bank 0 |
Bank 1 |
SW1/1 |
SW1/4 |
SW1/5 |
|
0 wait states |
0 wait states |
Off |
Off |
Off |
|
0 wait states |
1 wait state |
Off |
Off |
On |
|
1 wait state |
0 wait states |
Off |
On |
Off |
|
1 wait state |
1 wait state |
Off |
On |
On |
|
1 wait state |
1 wait state |
On |
N/A |
N/A |
|
BIOS TYPE CONFIGURATION | ||||
|
Type |
SW1/7 |
SW1/8 |
SW1/9 |
SW1/10 |
|
27128 |
On |
On |
Off |
Off |
|
27256 |
Off |
Off |
On |
On |
