Processor	AM386SX/80386SX/CX486SLC
Processor Speed	16/33/40MHz
Chip Set	OPTI
Max. Onboard DRAM	16MB
Cache	16/32/64/128KB
BIOS	Unidentified
Dimensions	220mm x 220mm
I/O Options	None
NPU Options	80387SX

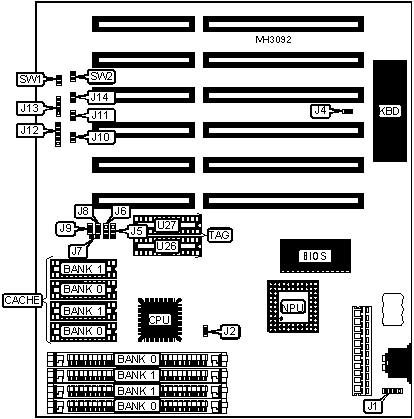

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J1	Turbo LED	J14
Power LED & keylock	J12	Reset switch	SW1
Speaker	J13	Turbo switch	SW2

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Battery type select internal	J1	pins 2 & 3 closed
	Battery type select external	J1	Closed
	Monitor type select color	J4	Closed
	Monitor type select monochrome	J4	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(2) 256K x 9	(2) 256K x 9
2MB	(2) 1M x 9	NONE
4MB	(2) 1M x 9	(2) 1M x 9
8MB	(2) 4M x 9	NONE
10MB	(2) 1M x 9	(2) 4M x 9
16MB	(2) 4M x 9	(2) 4M x 9

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG (U26)	TAG (U27)
16KB	(2) 8K x 8	NONE	(1) 8K x 8	NONE
32KB	(2) 8K x 8	(2) 8K x 8	(1) 8K x 8	NONE
64KB	(2) 32K x 8	NONE	(1) 8K x 8	NONE
128KB	(2) 32K x 8	(2) 32K x 8	(1) 8K x 8	(1) 8K x 8

CACHE JUMPER CONFIGURATION
Size	J5	J6	J7	J8	J9	J10
16KB	2 & 3	2 & 3	Open	Open	Open	Open
32KB	2 & 3	2 & 3	Open	Open	Closed	Open
64KB	1 & 2	2 & 3	Open	Closed	Closed	Open
128KB	1 & 2	1 & 2	Closed	Closed	Closed	Closed
Note: Pins designated should be in the closed position.

CPU TYPE CONFIGURATION
Type	J2	J11
AM386SX	Open	Open
80386SX	Open	Open
CX486SLC	Closed	Closed
