XE 5XX-2, SP5XX-2

DELL COMPUTER CORPORATION

XE 5XX-2, SP5XX-2

Processor

Pentium

Processor Speed

90/100MHz

Chip Set

Unidentified

Video Chip Set

ATI

Maximum Onboard Memory

512MB

Maximum Video Memory

2MB

Cache

256/512KB

BIOS

Unidentified

Dimensions

330mm x 218mm

I/O Options

Floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2), feature connector, VGA port, riser slot, cache slot

NPU Options

None

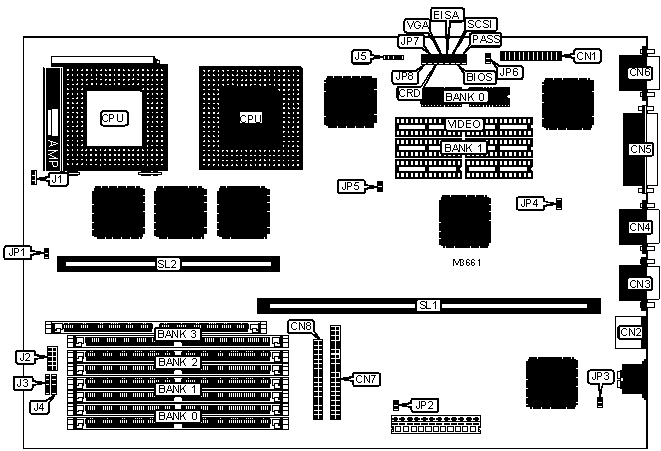

CONNECTIONS

Purpose

Location

Purpose

Location

Feature connector

CN1

Chassis fan power

J1

PS/2 mouse port

CN2

Front panel connector

J2

Serial port 2

CN3

External battery

J3

Serial port 1

CN4

Speaker

J4

Parallel port

CN5

IDE interface LED

J5

VGA port

CN6

Riser slot

SL1

IDE interface

CN7

Cache slot

SL2

Floppy drive interface

CN8

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Flash BIOS update enabled

BIOS

Closed

Flash BIOS update disabled

BIOS

Open

»

Factory configured - do not alter

CRD

Unidentified

»

EISA configuration settings cleared at boot

EISA

Open

EISA configuration settings not cleared at boot

EISA

Closed

»

Factory configured - do not alter

JP1

Unidentified

»

Factory configured - do not alter

JP2

Unidentified

»

Factory configured - do not alter

JP3

Unidentified

»

Factory configured - do not alter

JP4

Unidentified

»

Factory configured - do not alter

JP5

Unidentified

»

Factory configured - do not alter

JP6

Unidentified

»

Password enabled

PASS

Closed

Password disabled

PASS

Open

»

SCSI host adapter is terminated

SCSI

Closed

SCSI host adapter is not terminated

SCSI

Open

»

On board video enabled

VGA

Closed

On board video disabled

VGA

Open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

8MB

(2) 1M x 36

None

None

None

16MB

(2) 2M x 36

None

None

None

16MB

(2) 1M x 36

(2) 1M x 36

None

None

24MB

(2) 2M x 36

(2) 1M x 36

None

None

24MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

None

32MB

(2) 4M x 36

None

None

None

32MB

(2) 2M x 36

(2) 2M x 36

None

None

32MB

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

None

32MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

40MB

(2) 4M x 36

(2) 1M x 36

None

None

40MB

(2) 2M x 36

(2) 2M x 36

(2) 1M x 36

None

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

40MB

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

None

None

48MB

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

None

48MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

None

48MB

(2) 2M x 36

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

56MB

(2) 4M x 36

(2) 2M x 36

(2) 1M x 36

None

56MB

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

56MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

(2) 1M x 36

64MB

(2) 8M x 36

None

None

None

64MB

(2) 4M x 36

(2) 4M x 36

None

None

64MB

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

None

64MB

(2) 4M x 36

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

64MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

72MB

(2) 8M x 36

(2) 1M x 36

None

None

72MB

(2) 4M x 36

(2) 4M x 36

(2) 1M x 36

None

72MB

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

None

None

80MB

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

None

80MB

(2) 4M x 36

(2) 4M x 36

(2) 2M x 36

None

80MB

(2) 4M x 36

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

80MB

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

88MB

(2) 8M x 36

(2) 2M x 36

(2) 1M x 36

None

88MB

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

88MB

(2) 4M x 36

(2) 4M x 36

(2) 2M x 36

(2) 1M x 36

96MB

(2) 8M x 36

(2) 4M x 36

None

None

96MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

None

96MB

(2) 8M x 36

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

96MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

None

96MB

(2) 4M x 36

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

104MB

(2) 8M x 36

(2) 4M x 36

(2) 1M x 36

None

104MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

(2) 1M x 36

104MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

(2) 1M x 36

112MB

(2) 8M x 36

(2) 4M x 36

(2) 2M x 36

None

112MB

(2) 8M x 36

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

112MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

112MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

(2) 2M x 36

120MB

(2) 8M x 36

(2) 4M x 36

(2) 2M x 36

(2) 1M x 36

128MB

(2) 16M x 36

None

None

None

128MB

(2) 8M x 36

(2) 8M x 36

None

None

128MB

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

None

128MB

(2) 8M x 36

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

128MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

136MB

(2) 16M x 36

(2) 1M x 36

None

None

136MB

(2) 8M x 36

(2) 8M x 36

(2) 1M x 36

None

136MB

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

None

None

144MB

(2) 16M x 36

(2) 1M x 36

(2) 1M x 36

None

144MB

(2) 8M x 36

(2) 8M x 36

(2) 2M x 36

None

144MB

(2) 8M x 36

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

144MB

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

(2) 2M x 36

152MB

(2) 16M x 36

(2) 2M x 36

(2) 1M x 36

None

152MB

(2) 16M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

152MB

(2) 8M x 36

(2) 8M x 36

(2) 2M x 36

(2) 1M x 36

160MB

(2) 16M x 36

(2) 4M x 36

None

None

160MB

(2) 16M x 36

(2) 2M x 36

(2) 2M x 36

None

160MB

(2) 16M x 36

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

160MB

(2) 8M x 36

(2) 8M x 36

(2) 4M x 36

None

160MB

(2) 8M x 36

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

160MB

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

168MB

(2) 16M x 36

(2) 4M x 36

(2) 1M x 36

None

168MB

(2) 16M x 36

(2) 2M x 36

(2) 2M x 36

(2) 1M x 36

168MB

(2) 8M x 36

(2) 8M x 36

(2) 4M x 36

(2) 1M x 36

176MB

(2) 16M x 36

(2) 4M x 36

(2) 2M x 36

None

176MB

(2) 16M x 36

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

176MB

(2) 16M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

176MB

(2) 8M x 36

(2) 8M x 36

(2) 4M x 36

(2) 2M x 36

184MB

(2) 16M x 36

(2) 4M x 36

(2) 2M x 36

(2) 1M x 36

192MB

(2) 16M x 36

(2) 8M x 36

None

None

192MB

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

None

192MB

(2) 16M x 36

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

192MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

None

192MB

(2) 8M x 36

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

200MB

(2) 16M x 36

(2) 8M x 36

(2) 1M x 36

None

200MB

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

(2) 1M x 36

200MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

(2) 1M x 36

208MB

(2) 16M x 36

(2) 8M x 36

(2) 2M x 36

None

208MB

(2) 16M x 36

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

208MB

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

(2) 2M x 36

208MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

(2) 2M x 36

216MB

(2) 16M x 36

(2) 8M x 36

(2) 2M x 36

(2) 1M x 36

224MB

(2) 16M x 36

(2) 8M x 36

(2) 4M x 36

None

224MB

(2) 16M x 36

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

224MB

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

224MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

(2) 4M x 36

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

232MB

(2) 16M x 36

(2) 8M x 36

(2) 4M x 36

(2) 1M x 36

240MB

(2) 16M x 36

(2) 8M x 36

(2) 4M x 36

(2) 2M x 36

256MB

(2) 16M x 36

(2) 16M x 36

None

None

256MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

None

256MB

(2) 16M x 36

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

256MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

264MB

(2) 16M x 36

(2) 16M x 36

(2) 1M x 36

None

264MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

(2) 1M x 36

272MB

(2) 16M x 36

(2) 16M x 36

(2) 2M x 36

None

272MB

(2) 16M x 36

(2) 16M x 36

(2) 1M x 36

(2) 1M x 36

272MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

(2) 2M x 36

280MB

(2) 16M x 36

(2) 16M x 36

(2) 2M x 36

(2) 1M x 36

288MB

(2) 16M x 36

(2) 16M x 36

(2) 4M x 36

None

288MB

(2) 16M x 36

(2) 16M x 36

(2) 2M x 36

(2) 2M x 36

288MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

(2) 4M x 36

296MB

(2) 16M x 36

(2) 16M x 36

(2) 4M x 36

(2) 1M x 36

304MB

(2) 16M x 36

(2) 16M x 36

(2) 4M x 36

(2) 2M x 36

320MB

(2) 16M x 36

(2) 16M x 36

(2) 8M x 36

None

320MB

(2) 16M x 36

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

320MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

328MB

(2) 16M x 36

(2) 16M x 36

(2) 8M x 36

(2) 1M x 36

336MB

(2) 16M x 36

(2) 16M x 36

(2) 8M x 36

(2) 2M x 36

352MB

(2) 16M x 36

(2) 16M x 36

(2) 8M x 36

(2) 4M x 36

384MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

None

384MB

(2) 16M x 36

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

392MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

(2) 1M x 36

400MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

(2) 2M x 36

416MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

(2) 4M x 36

448MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

(2) 8M x 36

512MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

CACHE CONFIGURATION

Size

SL1

256KB

256KB module installed

512KB

512KB module installed

VIDEO MEMORY CONFIGURATION

Size

Bank 0

Bank 1

512KB

512KB

None

2MB

512KB

(6) 256K x 8

Note: Bank 0 is factory installed and is not configurable.

CPU SPEED SELECTION

Speed

JP7

JP8

90MHz

Closed

Open

100MHz

Open

Closed

Processor	Pentium
Processor Speed	90/100MHz
Chip Set	Unidentified
Video Chip Set	ATI
Maximum Onboard Memory	512MB
Maximum Video Memory	2MB
Cache	256/512KB
BIOS	Unidentified
Dimensions	330mm x 218mm
I/O Options	Floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2), feature connector, VGA port, riser slot, cache slot
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
Feature connector	CN1	Chassis fan power	J1
PS/2 mouse port	CN2	Front panel connector	J2
Serial port 2	CN3	External battery	J3
Serial port 1	CN4	Speaker	J4
Parallel port	CN5	IDE interface LED	J5
VGA port	CN6	Riser slot	SL1
IDE interface	CN7	Cache slot	SL2
Floppy drive interface	CN8

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Flash BIOS update enabled	BIOS	Closed
	Flash BIOS update disabled	BIOS	Open
»	Factory configured - do not alter	CRD	Unidentified
»	EISA configuration settings cleared at boot	EISA	Open
	EISA configuration settings not cleared at boot	EISA	Closed
»	Factory configured - do not alter	JP1	Unidentified
»	Factory configured - do not alter	JP2	Unidentified
»	Factory configured - do not alter	JP3	Unidentified
»	Factory configured - do not alter	JP4	Unidentified
»	Factory configured - do not alter	JP5	Unidentified
»	Factory configured - do not alter	JP6	Unidentified
»	Password enabled	PASS	Closed
	Password disabled	PASS	Open
»	SCSI host adapter is terminated	SCSI	Closed
	SCSI host adapter is not terminated	SCSI	Open
»	On board video enabled	VGA	Closed
	On board video disabled	VGA	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
8MB	(2) 1M x 36	None	None	None
16MB	(2) 2M x 36	None	None	None
16MB	(2) 1M x 36	(2) 1M x 36	None	None
24MB	(2) 2M x 36	(2) 1M x 36	None	None
24MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36	None
32MB	(2) 4M x 36	None	None	None
32MB	(2) 2M x 36	(2) 2M x 36	None	None
32MB	(2) 2M x 36	(2) 1M x 36	(2) 1M x 36	None
32MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
40MB	(2) 4M x 36	(2) 1M x 36	None	None
40MB	(2) 2M x 36	(2) 2M x 36	(2) 1M x 36	None

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3
40MB	(2) 2M x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36	None	None
48MB	(2) 4M x 36	(2) 1M x 36	(2) 1M x 36	None
48MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36	None
48MB	(2) 2M x 36	(2) 2M x 36	(2) 1M x 36	(2) 1M x 36
56MB	(2) 4M x 36	(2) 2M x 36	(2) 1M x 36	None
56MB	(2) 4M x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
56MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36	(2) 1M x 36
64MB	(2) 8M x 36	None	None	None
64MB	(2) 4M x 36	(2) 4M x 36	None	None
64MB	(2) 4M x 36	(2) 2M x 36	(2) 2M x 36	None
64MB	(2) 4M x 36	(2) 2M x 36	(2) 1M x 36	(2) 1M x 36
64MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
72MB	(2) 8M x 36	(2) 1M x 36	None	None
72MB	(2) 4M x 36	(2) 4M x 36	(2) 1M x 36	None
72MB	(2) 4M x 36	(2) 2M x 36	(2) 2M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36	None	None
80MB	(2) 8M x 36	(2) 1M x 36	(2) 1M x 36	None
80MB	(2) 4M x 36	(2) 4M x 36	(2) 2M x 36	None
80MB	(2) 4M x 36	(2) 4M x 36	(2) 1M x 36	(2) 1M x 36
80MB	(2) 4M x 36	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
88MB	(2) 8M x 36	(2) 2M x 36	(2) 1M x 36	None
88MB	(2) 8M x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
88MB	(2) 4M x 36	(2) 4M x 36	(2) 2M x 36	(2) 1M x 36
96MB	(2) 8M x 36	(2) 4M x 36	None	None
96MB	(2) 8M x 36	(2) 2M x 36	(2) 2M x 36	None
96MB	(2) 8M x 36	(2) 2M x 36	(2) 1M x 36	(2) 1M x 36
96MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36	None
96MB	(2) 4M x 36	(2) 4M x 36	(2) 2M x 36	(2) 2M x 36
104MB	(2) 8M x 36	(2) 4M x 36	(2) 1M x 36	None
104MB	(2) 8M x 36	(2) 2M x 36	(2) 2M x 36	(2) 1M x 36
104MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36	(2) 1M x 36
112MB	(2) 8M x 36	(2) 4M x 36	(2) 2M x 36	None
112MB	(2) 8M x 36	(2) 4M x 36	(2) 1M x 36	(2) 1M x 36
112MB	(2) 8M x 36	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
112MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36	(2) 2M x 36
120MB	(2) 8M x 36	(2) 4M x 36	(2) 2M x 36	(2) 1M x 36
128MB	(2) 16M x 36	None	None	None
128MB	(2) 8M x 36	(2) 8M x 36	None	None
128MB	(2) 8M x 36	(2) 4M x 36	(2) 4M x 36	None
128MB	(2) 8M x 36	(2) 4M x 36	(2) 2M x 36	(2) 2M x 36
128MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36

CACHE CONFIGURATION
Size	SL1
256KB	256KB module installed
512KB	512KB module installed

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1
512KB	512KB	None
2MB	512KB	(6) 256K x 8
Note: Bank 0 is factory installed and is not configurable.

CPU SPEED SELECTION
Speed	JP7	JP8
90MHz	Closed	Open
100MHz	Open	Closed
