DELL COMPUTER CORPORATION
DIMENSION PXXXT
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
S3 |
|
Maximum Onboard Memory |
128MB (EDO supported) |
|
Maximum Video Memory |
2MB |
|
Cache |
256KB |
|
BIOS |
Unidentified |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VESA feature connector, VGA interface, cache slot, IR connector, ATX power connector |
|
NPU Options |
None |
|

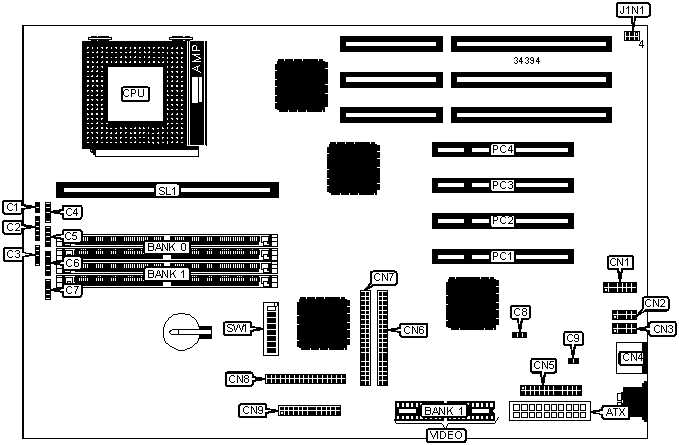

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
ATX power connector |
ATX |
Serial port 1 |
CN2 |
|
Reset switch |
C1 |
Serial port 2 |
CN3 |
|
Power LED & keylock |
C2 |
PS/2 mouse port |
CN4 |
|
IDE interface LED |
C3 |
VESA feature connector |
CN5 |
|
Speaker |
C4 |
IDE interface 2 |
CN6 |
|
Chassis fan power |
C5 |
IDE interface 1 |
CN7 |
|
IR connector |
C6 |
Floppy drive interface |
CN8 |
|
Green PC connector |
C7 |
Parallel port |
CN9 |
|
Chassis fan power |
C8 |
32-bit PCI slots |
PC1 – PC4 |
|
Soft off power supply |
C9 |
Cache slot |
SL1 |
|
VGA interface |
CN1 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
J1N1 |
Unidentified |
|
» |
Factory configured - do not alter |
SW1/1 |
Off |
|
» |
Password enabled |
SW1/3 |
Off |
|
Password disabled |
SW1/3 |
On | |
|
» |
CMOS memory normal operation |
SW1/4 |
Off |
|
CMOS memory clear |
SW1/4 |
On | |
|
» |
Setup access enabled |
SW1/5 |
Off |
|
Setup access disabled |
SW1/5 |
On | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 32 |
None |
|
16MB |
(2) 2M x 32 |
None |
|
16MB |
(2) 1M x 32 |
(2) 1M x 32 |
|
24MB |
(2) 2M x 32 |
(2) 1M x 32 |
|
32MB |
(2) 4M x 32 |
None |
|
32MB |
(2) 2M x 32 |
(2) 2M x 32 |
|
40MB |
(2) 4M x 32 |
(2) 1M x 32 |
|
48MB |
(2) 4M x 32 |
(2) 2M x 32 |
|
64MB |
(2) 8M x 32 |
None |
|
64MB |
(2) 4M x 32 |
(2) 4M x 32 |
|
72MB |
(2) 8M x 32 |
(2) 1M x 32 |
|
80MB |
(2) 8M x 32 |
(2) 2M x 32 |
|
96MB |
(2) 8M x 32 |
(2) 4M x 32 |
|
128MB |
(2) 8M x 32 |
(2) 8M x 32 |
|
Note: Board accepts EDO memory. | ||
|
CACHE CONFIGURATION | |
|
Size |
SL1 |
|
256KB |
256KB module installed |
|
VIDEO MEMORY CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
1MB |
None |
|
2MB |
1MB |
(2) 256K x 16 |
|
Note: Bank 0 is factory installed and is not configurable. The location is unidentified. | ||
|
CPU SPEED SELECTION | |||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/6 |
SW1/7 |
SW1/8 |
|
75MHz |
50MHz |
1.5x |
Off |
On |
Off |
|
90MHz |
60MHz |
1.5x |
Off |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
Off |
On |
On |
|
120MHz |
60MHz |
2x |
On |
Off |
Off |
|
133MHz |
66MHz |
2x |
On |
On |
On |
|
CPU VOLTAGE SELECTION | |
|
Voltage |
SW1/2 |
|
3.3v |
Off |
|
3.45v – 3.6v |
On |
