DELL COMPUTER CORPORATION
POWEREDGE SP 5XX-2
|
Processor |
Pentium |
|
Processor Speed |
90/100MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
ATI |
|
Maximum Onboard Memory |
512MB |
|
Maximum Video Memory |
2MB |
|
Cache |
256/512KB |
|
BIOS |
Unidentified |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
Floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port, riser slot, cache slot, ATX power connector |
|
NPU Options |
None |
|

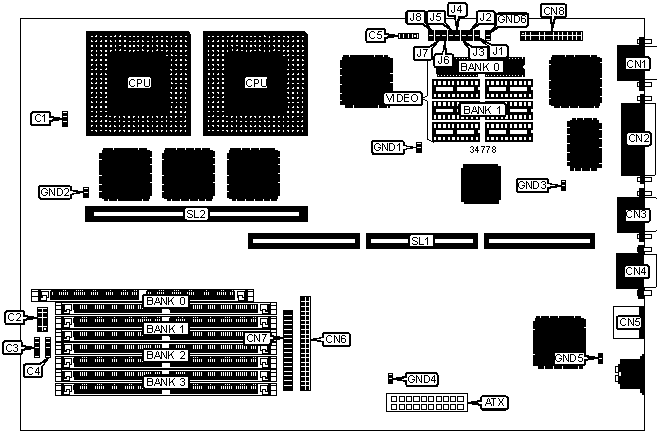

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
ATX power connector |
ATX |
Serial port 1 |
CN3 |
|
Chassis fan power |
C1 |
Serial port 2 |
CN4 |
|
Front panel connector |
C2 |
PS/2 mouse port |
CN5 |
|
External battery |
C3 |
IDE interface |
CN6 |
|
Speaker |
C4 |
Floppy drive interface |
CN7 |
|
IDE interface LED |
C5 |
VGA feature connector |
CN8 |
|
VGA port |
CN1 |
Riser slot |
SL1 |
|
Parallel port |
CN2 |
Cache slot |
SL2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
GND1 |
Unidentified |
|
» |
Factory configured - do not alter |
GND2 |
Unidentified |
|
» |
Factory configured - do not alter |
GND3 |
Unidentified |
|
» |
Factory configured - do not alter |
GND4 |
Unidentified |
|
» |
Factory configured - do not alter |
GND5 |
Unidentified |
|
» |
Factory configured - do not alter |
GND6 |
Unidentified |
|
» |
Password enabled |
J1 |
Closed |
|
Password disabled |
J1 |
Open | |
|
» |
Flash BIOS update enabled |
J2 |
Closed |
|
Flash BIOS update disabled |
J2 |
Open | |
|
» |
SCSI termination enabled |
J3 |
Closed |
|
SCSI termination disabled |
J3 |
Open | |
|
» |
EISA settings retained at boot up |
J4 |
Open |
|
EISA settings are not retained at boot up |
J4 |
Closed | |
|
» |
On board video enabled |
J5 |
Closed |
|
On board video disabled |
J5 |
Open | |
|
» |
Factory configured - do not alter |
J6 |
Open |
|
SIMM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
8MB |
(2) 1M x 36 |
None |
None |
None |
|
16MB |
(2) 2M x 36 |
None |
None |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
None |
None |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
None |
None |
|
32MB |
(2) 4M x 36 |
None |
None |
None |
|
32MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
None |
None |
|
40MB |
(2) 1M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
None |
None |
|
SIMM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
48MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
None |
None |
|
64MB |
(2) 8M x 36 |
None |
None |
None |
|
64MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
None |
None |
|
72MB |
(2) 1M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
None |
None |
|
80MB |
(2) 2M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
None |
None |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
None |
None |
|
128MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
None |
None |
|
136MB |
(2) 1M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
None |
|
144MB |
(2) 2M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
None |
|
160MB |
(2) 4M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
None |
|
192MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
None |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
None |
None |
|
384MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 16M x 36 |
None |
|
512MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 16M x 36 |
|
CACHE CONFIGURATION | |
|
Size |
SL1 |
|
256KB |
256KB module installed |
|
512KB |
512KB module installed |
|
VIDEO MEMORY CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
512KB |
512KB |
None |
|
2MB |
512KB |
(6) 256K x 8 |
|
CPU SPEED SELECTION | ||
|
Speed |
J7 |
J8 |
|
90MHz |
Closed |
Open |
|
100MHz |
Open |
Closed |
