G586VPM (REV. C+)

DIAMOND FLOWER, INC.

G586VPM (REV. C+)

Device Type

Mainboard

Processor

Pentium

Processor Speed

75/90/100/120/133MHz

Chip Set

VLSI

Video Chip Set

None

Maximum Onboard Memory

512MB

Maximum Video Memory

None

Cache

256/512/1024KB

BIOS

Award

Dimensions

330mm x 220mm

I/O Options

32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), cache slot

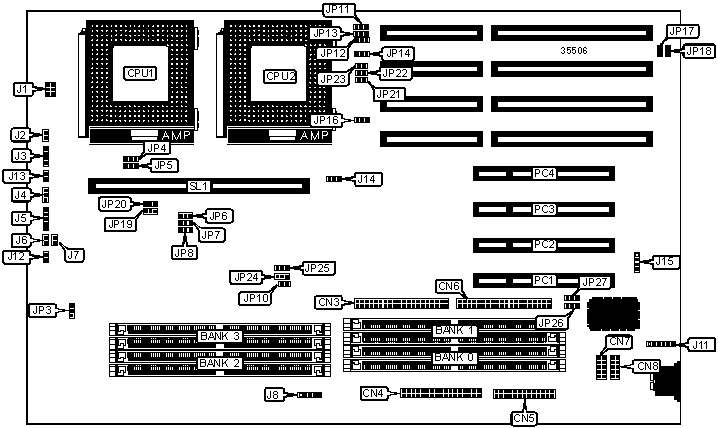

CONNECTIONS

Purpose

Location

Purpose

Location

IDE interface 1

CN3

Turbo switch

J4

Floppy drive interface

CN4

Power LED & keylock

J5

Parallel port

CN5

IDE interface LED

J6

IDE interface 2

CN6

Disk active LED

J7

Serial port 2

CN7

PS/2 mouse interface

J11

Serial port 1

CN8

32-bit PCI slots

PC1 – PC4

Reset switch

J2

Cache slot

SL1

Speaker

J3

IR connector

J8

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

JP10

Off

»

Factory configured - do not alter

JP13

Pins 1 & 2 closed

»

Advanced programmable interrupt controller disabled

JP14

Pins 1 & 2 closed

Advanced programmable interrupt controller enabled

JP14

Pins 2 & 3 closed

»

Factory configured - do not alter

JP16

Pins 1 & 2 closed

»

Monitor type select color

JP17

Closed

Monitor type select monochrome

JP17

Open

»

PS/2 mouse IRQ12 enabled

JP18

Closed

PS/2 mouse IRQ12 disabled

JP18

Open

»

Factory configured - do not alter

JP21

On

»

Factory configured - do not alter

JP22

On

»

Factory configured - do not alter

JP23

On

Note: The location of J8 is unidentified.

SIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

4MB

(2) 256KB x 36

(2) 256KB x 36

None

None

4MB

(2) 512KB x 36

None

None

None

6MB

(2) 256KB x 36

(2) 256KB x 36

(2) 256KB x 36

None

8MB

(2) 256KB x 36

(2) 256KB x 36

(2) 256KB x 36

(2) 256KB x 36

8MB

(2) 512KB x 36

(2) 512KB x 36

None

None

8MB

(2) 1MB x 36

None

None

None

12MB

(2) 512KB x 36

(2) 512KB x 36

(2) 512KB x 36

16MB

(2) 512KB x 36

(2) 512KB x 36

(2) 512KB x 36

(2) 512KB x 36

16MB

(2) 1MB x 36

(2) 1MB x 36

None

None

16MB

(2) 2MB x 36

None

None

None

24MB

(2) 1MB x 36

(2) 1MB x 36

(2) 1MB x 36

None

32MB

(2) 1MB x 36

(2) 1MB x 36

(2) 1MB x 36

(2) 1MB x 36

32MB

(2) 2MB x 36

(2) 2MB x 36

None

None

32MB

(2) 4MB x 36

None

None

None

48MB

(2) 2MB x 36

(2) 2MB x 36

(2) 2MB x 36

None

64MB

(2) 2MB x 36

(2) 2MB x 36

(2) 2MB x 36

(2) 2MB x 36

64MB

(2) 4MB x 36

(2) 4MB x 36

None

None

64MB

(2) 8MB x 36

None

None

None

96MB

(2) 4MB x 36

(2) 4MB x 36

(2) 4MB x 36

None

128MB

(2) 4MB x 36

(2) 4MB x 36

(2) 4MB x 36

(2) 4MB x 36

128MB

(2) 8MB x 36

(2) 8MB x 36

None

None

192MB

(2) 8MB x 36

(2) 8MB x 36

(2) 8MB x 36

None

256MB

(2) 8MB x 36

(2) 8MB x 36

(2) 8MB x 36

(2) 8MB x 36

512MB

(2) 16MB x 36

None

None

None

CACHE CONFIGURATION

Size

SL1

TAG

256KB

256KB module installed

Unidentified

512KB

512KB module installed

Unidentified

1MB

1MB module installed

Unidentified

Note: The location of the TAG is unidentified.

CACHE JUMPER CONFIGURATION

Size

JP6

JP7

JP8

JP19

JP20

TAG

256KB (A)

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

Not installed

512KB (A)

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

Not installed

512KB (B)

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

Installed

1MB (B)

2 & 3

1 & 2

2 & 3

2 & 3

2 & 3

Installed

Note: Pins designated should be in the closed position. (A) = 32-byte line size. (B) = 64-byte line size.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

J6

J11

J12

75MHz

50MHz

1.5x

1 & 2

2 & 3

2 & 3

90MHz

60MHz

1.5x

1 & 2, 5 & 6

2 & 3

2 & 3

100MHz

66MHz

1.5x

1 & 2, 3 & 4, 5 & 6

2 & 3

2 & 3

100MHz

50MHz

2x

1 & 2

1 & 2

1 & 2

120MHz

60MHz

2x

1 & 2, 5 & 6

1 & 2

1 & 2

133MHz

66MHz

2x

1 & 2, 3 & 4, 5 & 6

2 & 3

1 & 2

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION

Voltage

JP3

CPU voltage 3.45V-3.6V

Pins 1 & 2 closed

CPU voltage 3.3V-3.45V

Pins 2 & 3 closed

PCI MASTER/SLAVE

PCI

JP24

JP25

PCI slot 4 master

Pins 2 & 3 closed

Pins 2 & 3 closed

PCI slot 4 slave

Pins 1 & 2 closed

Pins 1 & 2 closed

PRINTER PORT DMA CHANNEL

Channel

JP26

JP27

1

Pins 1 & 2 closed

Pins 1 & 2 closed

3

Pins 2 & 3 closed

Pins 2 & 3 closed

CACHE MEMORY TYPE

Type

JP4

JP5

Asynchronous SRAM module

Pins 1 & 2 closed

Pins 1 & 2 closed

Pipeline burst SRAM module

Pins 2 & 3 closed

Pins 2 & 3 closed

Device Type	Mainboard
Processor	Pentium
Processor Speed	75/90/100/120/133MHz
Chip Set	VLSI
Video Chip Set	None
Maximum Onboard Memory	512MB
Maximum Video Memory	None
Cache	256/512/1024KB
BIOS	Award
Dimensions	330mm x 220mm
I/O Options	32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), cache slot

CONNECTIONS
Purpose	Location	Purpose	Location
IDE interface 1	CN3	Turbo switch	J4
Floppy drive interface	CN4	Power LED & keylock	J5
Parallel port	CN5	IDE interface LED	J6
IDE interface 2	CN6	Disk active LED	J7
Serial port 2	CN7	PS/2 mouse interface	J11
Serial port 1	CN8	32-bit PCI slots	PC1 – PC4
Reset switch	J2	Cache slot	SL1
Speaker	J3	IR connector	J8

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	JP10	Off
»	Factory configured - do not alter	JP13	Pins 1 & 2 closed
»	Advanced programmable interrupt controller disabled	JP14	Pins 1 & 2 closed
	Advanced programmable interrupt controller enabled	JP14	Pins 2 & 3 closed
»	Factory configured - do not alter	JP16	Pins 1 & 2 closed
»	Monitor type select color	JP17	Closed
	Monitor type select monochrome	JP17	Open
»	PS/2 mouse IRQ12 enabled	JP18	Closed
	PS/2 mouse IRQ12 disabled	JP18	Open
»	Factory configured - do not alter	JP21	On
»	Factory configured - do not alter	JP22	On
»	Factory configured - do not alter	JP23	On
Note: The location of J8 is unidentified.

SIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
4MB	(2) 256KB x 36	(2) 256KB x 36	None	None
4MB	(2) 512KB x 36	None	None	None
6MB	(2) 256KB x 36	(2) 256KB x 36	(2) 256KB x 36	None
8MB	(2) 256KB x 36	(2) 256KB x 36	(2) 256KB x 36	(2) 256KB x 36
8MB	(2) 512KB x 36	(2) 512KB x 36	None	None
8MB	(2) 1MB x 36	None	None	None
12MB	(2) 512KB x 36	(2) 512KB x 36	(2) 512KB x 36
16MB	(2) 512KB x 36	(2) 512KB x 36	(2) 512KB x 36	(2) 512KB x 36
16MB	(2) 1MB x 36	(2) 1MB x 36	None	None
16MB	(2) 2MB x 36	None	None	None
24MB	(2) 1MB x 36	(2) 1MB x 36	(2) 1MB x 36	None
32MB	(2) 1MB x 36	(2) 1MB x 36	(2) 1MB x 36	(2) 1MB x 36
32MB	(2) 2MB x 36	(2) 2MB x 36	None	None
32MB	(2) 4MB x 36	None	None	None
48MB	(2) 2MB x 36	(2) 2MB x 36	(2) 2MB x 36	None
64MB	(2) 2MB x 36	(2) 2MB x 36	(2) 2MB x 36	(2) 2MB x 36
64MB	(2) 4MB x 36	(2) 4MB x 36	None	None
64MB	(2) 8MB x 36	None	None	None
96MB	(2) 4MB x 36	(2) 4MB x 36	(2) 4MB x 36	None
128MB	(2) 4MB x 36	(2) 4MB x 36	(2) 4MB x 36	(2) 4MB x 36
128MB	(2) 8MB x 36	(2) 8MB x 36	None	None
192MB	(2) 8MB x 36	(2) 8MB x 36	(2) 8MB x 36	None
256MB	(2) 8MB x 36	(2) 8MB x 36	(2) 8MB x 36	(2) 8MB x 36
512MB	(2) 16MB x 36	None	None	None

CACHE CONFIGURATION
Size	SL1	TAG
256KB	256KB module installed	Unidentified
512KB	512KB module installed	Unidentified
1MB	1MB module installed	Unidentified
Note: The location of the TAG is unidentified.

CACHE JUMPER CONFIGURATION
Size	JP6	JP7	JP8	JP19	JP20	TAG
256KB (A)	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	Not installed
512KB (A)	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2	Not installed
512KB (B)	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2	Installed
1MB (B)	2 & 3	1 & 2	2 & 3	2 & 3	2 & 3	Installed
Note: Pins designated should be in the closed position. (A) = 32-byte line size. (B) = 64-byte line size.

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	J6	J11	J12
75MHz	50MHz	1.5x	1 & 2	2 & 3	2 & 3
90MHz	60MHz	1.5x	1 & 2, 5 & 6	2 & 3	2 & 3
100MHz	66MHz	1.5x	1 & 2, 3 & 4, 5 & 6	2 & 3	2 & 3
100MHz	50MHz	2x	1 & 2	1 & 2	1 & 2
120MHz	60MHz	2x	1 & 2, 5 & 6	1 & 2	1 & 2
133MHz	66MHz	2x	1 & 2, 3 & 4, 5 & 6	2 & 3	1 & 2
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION
Voltage	JP3
CPU voltage 3.45V-3.6V	Pins 1 & 2 closed
CPU voltage 3.3V-3.45V	Pins 2 & 3 closed

PCI MASTER/SLAVE
PCI	JP24	JP25
PCI slot 4 master	Pins 2 & 3 closed	Pins 2 & 3 closed
PCI slot 4 slave	Pins 1 & 2 closed	Pins 1 & 2 closed

PRINTER PORT DMA CHANNEL
Channel	JP26	JP27
1	Pins 1 & 2 closed	Pins 1 & 2 closed
3	Pins 2 & 3 closed	Pins 2 & 3 closed

CACHE MEMORY TYPE
Type	JP4	JP5
Asynchronous SRAM module	Pins 1 & 2 closed	Pins 1 & 2 closed
Pipeline burst SRAM module	Pins 2 & 3 closed	Pins 2 & 3 closed
