Device Type

Mainboard

Processor

Pentium

Processor Speed

166/180/200MHz

Chip Set

Unidentified

Video Chip Set

Unidentified

Maximum Onboard Memory

512MB

Maximum Video Memory

1MB

Cache

Unidentified

BIOS

Unidentified

Dimensions

254mm x 218mm

I/O Options

32-bit PCI slots (3), Ethernet 10/100BaseT connector, floppy drive interface, Wide SCSI interface, parallel port, PS/2 mouse port, serial ports (2), VGA port, ATX power connector

NPU Options

None

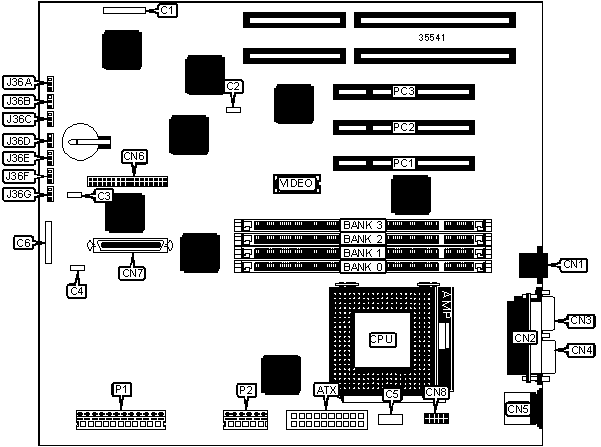

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

VGA port

CN3

SMM module connector

C1

Serial port 1

CN4

SCSI interface LED

C2

PS/2 mouse port

CN5

Chassis fan power 1

C3

Floppy drive interface

CN6

Chassis fan power 2

C4

Wide SCSI interface

CN7

Front panel connector

C5

Serial port 2

CN8

ATX interface

C6

5v power

P1

Ethernet 10/100BaseT connector

CN1

3.3v power

P2

Parallel port

CN2

32-bit PCI slots

PC1 - PC3

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

J36A

Pins 1 & 2 closed

CMOS memory clear

J36A

Pins 2 & 3 closed

»

Password normal operation

J36B

Pins 1 & 2 closed

Password clear

J36B

Pins 2 & 3 closed

»

Flash BIOS write disabled

J36C

Pins 1 & 2 closed

Flash BIOS write enabled

J36C

Pins 2 & 3 closed

»

Intrusion detection enabled

J37D

Pins 1 & 2 closed

Intrusion detection disabled

J37D

Pins 2 & 3 closed

»

Flash BIOS normal operation

J37E

Pins 1 & 2 closed

Flash BIOS recovery mode

J37E

Pins 2 & 3 closed

DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

16MB

(1) 2M x 64

None

None

None

32MB

(1) 4M x 64

None

None

None

32MB

(1) 2M x 64

(1) 2M x 64

None

None

48MB

(1) 4M x 64

(1) 2M x 64

None

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

None

64MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

None

None

64MB

(1) 4M x 64

(1) 4M x 64

None

None

80MB

(1) 8M x 64

(1) 2M x 64

None

None

96MB

(1) 8M x 64

(1) 4M x 64

None

None

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

None

DIMM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

128MB

(1) 16M x 64

None

None

None

128MB

(1) 8M x 64

(1) 8M x 64

None

None

128MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

144MB

(1) 16M x 64

(1) 2M x 64

None

None

160MB

(1) 16M x 64

(1) 4M x 64

None

None

176MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 16M x 64

(1) 8M x 64

None

None

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

None

224MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

None

256MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

288MB

(1) 16M x 64

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

320MB

(1) 16M x 64

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

320MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

None

512MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

CACHE CONFIGURATION

Note: The size and location of the cache is unidentified.

VIDEO MEMORY CONFIGURATION

Note: The size of the video memory is unidentified.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

J37F

J37G

166MHz

66MHz

2.5x

Pins 1 & 2 closed

N/A

180MHz

60MHz

3x

Pins 2 & 3 closed

N/A

200MHz

66MHz

3x

N/A

Pins 1 & 2 closed
