HYUNDAI ELECTRONICS, INC.
SUPER-386T/TELE-386TE
|

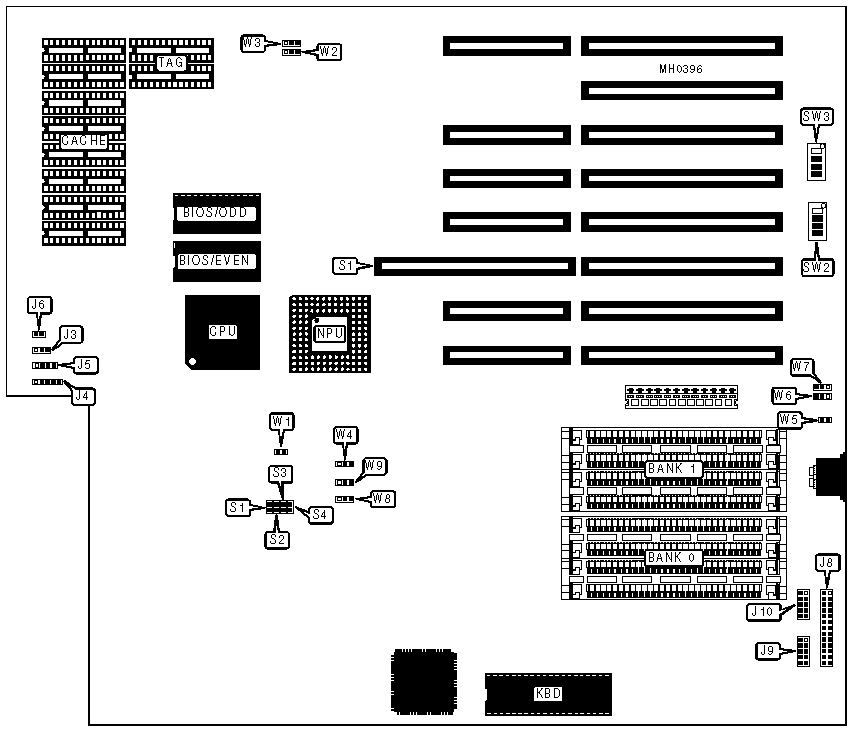

Processor |
80386DX |
|
Processor Speed |
33MHz |
|
Chip Set |
VLSI |
|
Max. Onboard DRAM |
8MB |
|
Cache |
64/256KB |
|
BIOS |
AMI |
|
Dimensions |
355mm x 304mm |
|
I/O Options |
Serial ports (2), parallel port, 32-bit external memory card slot |
|
NPU Options |
80387/3167 |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Turbo LED |
J3 |
Parallel port |
J8 |
|
Power LED & keylock |
J4 |
Serial port 1 |
J9 |
|
Speaker |
J5 |
Serial port 2 |
J10 |
|
Reset switch |
J6 |
32-bit external memory card slot |
S1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
DMA clock select fast |
W1 |
Closed |
|
DMA clock select slow |
W1 |
Open | |
| » |
Factory configured - do not alter |
W4 |
N/A |
| » |
Factory configured - do not alter |
W5 |
N/A |
| » |
CPU speed select switchable from keyboard |
W6 |
pins 2 & 3 closed |
|
CPU speed select fast |
W6 |
Open | |
|
CPU speed select slow |
W6 |
pins 1 & 2 closed | |
| » |
Monitor type select color |
W7 |
pins 2 & 3 closed |
|
Monitor type select monochrome |
W7 |
pins 1 & 2 closed | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(4) 256K x 9 |
NONE |
NONE |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
NONE |
|
4MB |
(4) 1M x 9 |
NONE |
NONE |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
6MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
10MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
12MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
16MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
Note:Banks 2 & 3 are used when a 32-bit external memory card is installed at S1. | ||||
|
DRAM JUMPER/SWITCH CONFIGURATION | ||||||
|
Size |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
W8 |
W9 |
|
1MB |
Off |
Off |
Off |
On |
2 & 3 |
2 & 3 |
|
2MB |
Off |
Off |
Off |
Off |
2 & 3 |
2 & 3 |
|
4MB |
Off |
Off |
Off |
On |
1 & 2 |
1 & 2 |
|
5MB |
Off |
Off |
Off |
Off |
2 & 3 |
1 & 2 |
|
6MB |
On |
Off |
Off |
Off |
2 & 3 |
2 & 3 |
|
8MB |
Off |
Off |
Off |
Off |
1 & 2 |
1 & 2 |
|
10MB |
Off |
Off |
Off |
Off |
2 & 3 |
2 & 3 |
|
12MB |
On |
Off |
Off |
Off |
1 & 2 |
1 & 2 |
|
16MB |
Off |
Off |
Off |
Off |
1 & 2 |
1 & 2 |
|
Note:Pins designated should be in the closed position. | ||||||
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
64KB |
(8) 16K x 4 |
(2) 16K x 4 |
|
256KB |
(8) 64K x 4 |
(2) 64K x 4 |
|
CACHE JUMPER CONFIGURATION | ||
|
Size |
W2 |
W3 |
|
64KB |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
256KB |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
PARALLEL PORT CONFIGURATION | |||||
|
J8 |
Address |
SW2/3 |
SW2/4 |
SW3/3 |
SW3/4 |
|
LPT1 |
IRQ5 |
Off |
Off |
On |
Off |
|
LPT1 |
IRQ7 |
Off |
Off |
Off |
On |
|
LPT1 |
Other |
Off |
Off |
Off |
Off |
|
LPT2 |
IRQ5 |
Off |
On |
On |
Off |
|
LPT2 |
IRQ7 |
Off |
On |
Off |
On |
|
LPT2 |
Other |
Off |
On |
Off |
Off |
|
Disabled |
Disabled |
On |
N/A |
Off |
Off |
|
SERIAL PORT 1 CONFIGURATION | |||
|
J9 |
Address |
SW2/1 |
SW3/1 |
|
COM1 |
IRQ4 |
Off |
On |
|
COM1 |
Other |
Off |
Off |
|
Disabled |
Disabled |
On |
Off |
|
SERIAL PORT 2 CONFIGURATION | |||
|
J10 |
Address |
SW2/2 |
SW3/2 |
|
COM2 |
IRQ3 |
Off |
On |
|
COM2 |
Other |
Off |
Off |
|
Disabled |
Disabled |
On |
Off |
