FIRST INTERNATIONAL COMPUTER, INC.

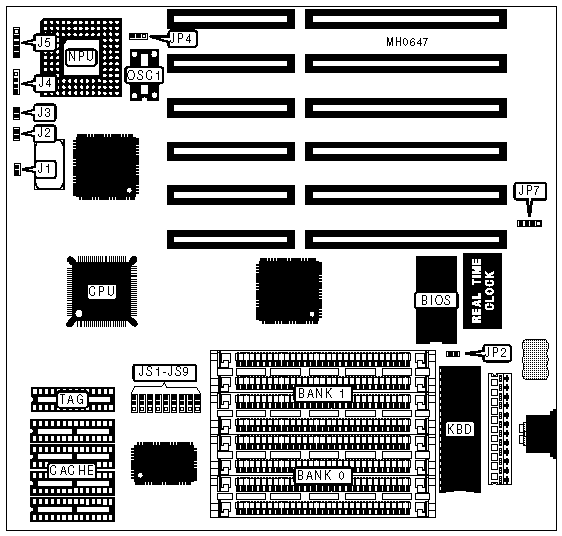

LEO 386-25/33/40SC-HQ (386-SC-HQ)
|
Processor |
80386DX |
|
Processor Speed |
25/33/40MHz |
|
Chip Set |
Symphony |
|
Max. Onboard DRAM |
32MB |
|
Cache |
32/128KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
80387/3167 |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Turbo LED |
J1 |
Speaker |
J4 |
|
Turbo switch |
J2 |
Power LED & keylock |
J5 |
|
Reset switch |
J3 |
External battery |
JP7 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
NPU mode select synchronous with CPU |
J8 |
pins 1 & 2 closed |
|
NPU mode select asynchronous with CPU |
J8 |
pins 2 & 3 closed | |
| » |
Monitor type select monochrome |
JP2 |
Open |
|
Monitor type select color |
JP2 |
Closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
17MB |
(4) 256K x 9 |
(4) 4M x 9 |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
32KB |
(4) 8K x 8 |
(1) 8K x 8 |
|
128KB |
(4) 32K x 8 |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | |||||||||
|
Size |
JS1 |
JS2 |
JS3 |
JS4 |
JS5 |
JS6 |
JS7 |
JS8 |
JS9 |
|
32KB |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
|
128KB |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | |||||||||
