GVC TECHNOLOGIES, INC.
386-40
|
Processor |
80386DX |
|
Processor Speed |
40MHz |
|
Chip Set |
SIS |
|
Max. Onboard DRAM |
64MB |
|
Cache |
32/64/128/256KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
80387/3167 |
|

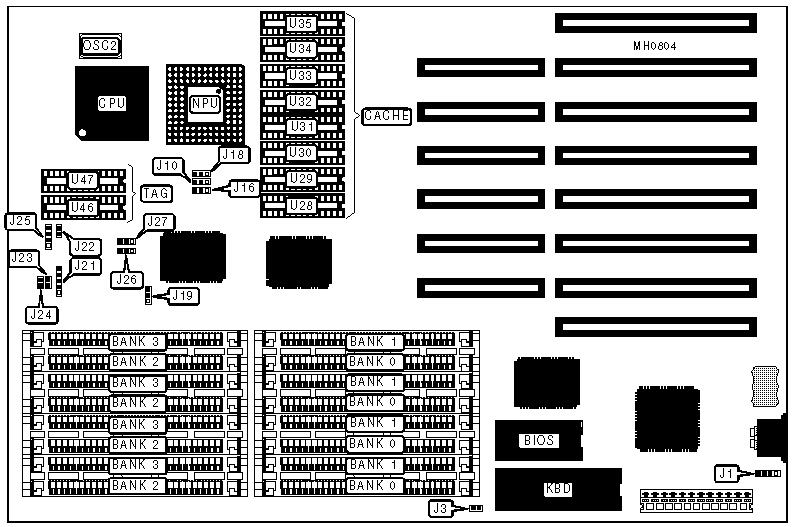

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
J1 |
Turbo switch |
J24 |
|
Power LED & keylock |
J21 |
Speaker |
J25 |
|
Turbo LED |
J23 |
Reset switch |
J22 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Factory configured - do not alter |
J2 |
pins 2 & 3 closed |
| » |
Monitor type select monochrome |
J3 |
Open |
|
Monitor type select color |
J3 |
Closed | |
| » |
Factory configured - do not alter |
J15 |
pins 1 & 2 closed |
| » |
NPU mode select synchronous with CPU |
J16 |
pins 1 & 2 closed |
|
NPU mode select synchronous with OSC2/2 |
J16 |
pins 2 & 3 closed | |
| » |
Fast gate A20 select normal |
J19 |
pins 1 & 2 closed |
|
Fast gate A20 select fast |
J19 |
pins 2 & 3 closed | |
|
Note:The locations of J2 & J15 are unidentified. | |||
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(4) 256K x 9 |
NONE |
NONE |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
NONE |
|
4MB |
(4) 1M x 9 |
NONE |
NONE |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
6MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
9MB |
(4) 256K x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
10MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
12MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
16MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
NONE |
NONE |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
NONE |
NONE |
|
24MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 4M x 9 |
NONE |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
NONE |
|
48MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
|
64MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
TAG (U46) |
TAG (U46) |
|
32KB |
(4) 8K x 8 |
NONE |
(1) 8K x 8 |
NONE |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(1) 8K x 8 |
(1) 8K x 8 |
|
128KB |
(4) 32K x 8 |
NONE |
(1) 32K x 8 |
NONE |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
(1) 32K x 8 |
|
Note: Bank 0 = U28, U30, U32 & U34. | ||||
|
CACHE JUMPER CONFIGURATION | ||||
|
Size |
J10 |
J18 |
J26 |
J27 |
|
32KB |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
64KB |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
128KB |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
256KB |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
