HEWLETT-PACKARD COMPANY
HP VECTRA RS PC Series
|
Processor |
80386DX |
|
Processor Speed |
16/20/25/33MHz |
|
Chip Set |
HP |
|
Max. Onboard DRAM |
16MB |
|
Cache |
None |
|
BIOS |
HP |
|
Dimensions |
320mm x 159mm |
|
I/O Options |
32-bit local bus backplane connector |
|
NPU Options |
80387/3167 |
|

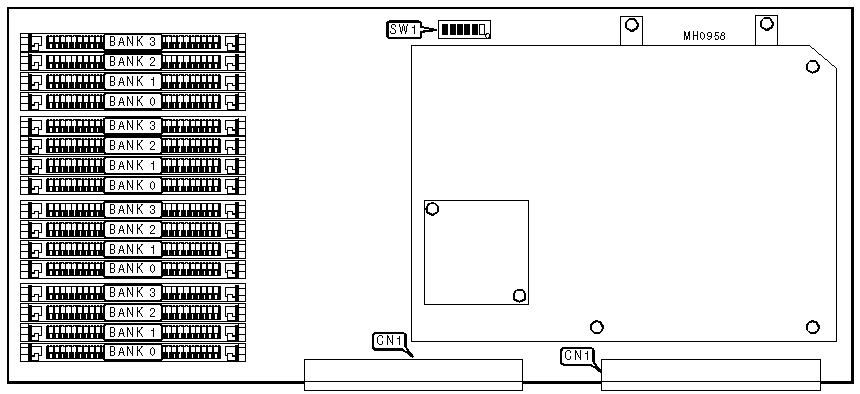

CONNECTIONS | |
|
Purpose |
Location |
|
32-bit local bus backplane |
CN1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Switch |
Position | |
| » |
NPU disabled |
SW1/1 |
On |
|
NPU enabled |
SW1/1 |
Off | |
| » |
Bus speed select asynchronous with CPU |
SW1/2 |
On |
|
Bus speed select synchronous with CPU |
SW1/2 |
Off | |
| » |
Base memory size select 640KB |
SW1/3 |
On |
|
Base memory size select 512KB |
SW1/3 |
Off | |
| » |
Optional ROM enabled (see note) |
SW1/4 |
On |
|
Optional ROM disabled (see note) |
SW1/4 |
Off | |
| » |
Factory configured - do not alter |
SW1/5 |
On |
| » |
Factory configured - do not alter |
SW1/6 |
On |
|
Note:Leave SW1/switch 4 in the closed position. Boards with a serial number less than 2947 will not boot if SW1/switch 4 is in the open position and there are no Optional ROMs installed. | |||
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(4) 256K x 9 |
NONE |
NONE |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
NONE |
|
4MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
NONE |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
10MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
