Processor	80286
Processor Speed	16MHz
Chip Set	C & T
Max. onboard DRAM	8MB
SRAM Cache	None
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	Floppy drive interface, IDE interface, Parallel port, serial port (2), VGA port
NPU Options	80287

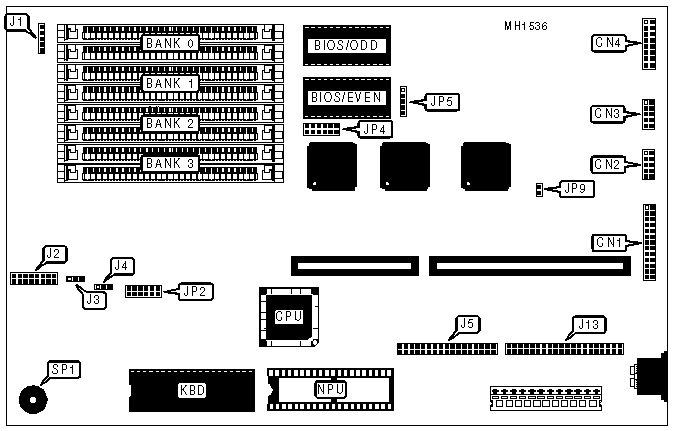

CONNECTIONS
Purpose	Location	Purpose	Location
Parallel port	CN1	Speaker connector	J3
Serial port (COM1)	CN2	IDE interface LED	J4
Serial port (COM2)	CN3	Floppy drive interface	J5
VGA port	CN4	IDE interface	J13
Unknown	J1	Speaker	SP1
LED connector	J2

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	JP2	pins 1 & 2, 5 & 6, 7 & 11 closed
»	Factory configured - do not alter	JP4	Pins 3 & 4, 10 & 11 closed
»	Factory configured - do not alter	JP5	Pins 2 & 3, 4 & 5 closed
»	Video enabled	JP9	Closed
	Video disabled	JP9	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
512KB	(2) 256K x 9	NONE	NONE	NONE
1MB	(2) 256K x 9	(2) 256K x 9	NONE	NONE
2MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9
3MB	(2) 256K x 9	(2) 256K x 9	(2) 1M x 9	NONE
4MB	(2) 1M x 9	(2) 1M x 9	NONE	NONE
5MB	(2) 256K x 9	(2) 256K x 9	(2) 1M x 9	(2) 1M x 9
8MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9
