FREE COMPUTER TECHNOLOGY, INC.
PENTIUM PCI
|
Processor |
Pentium |
|
Processor Speed |
60/66MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
192MB |
|
Cache |
256/512KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI slots (4) |
|
NPU Options |
None |
|

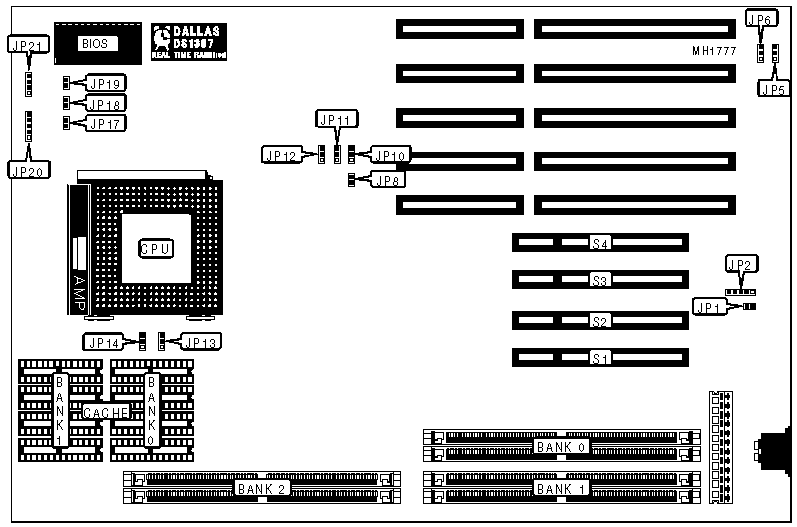

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Turbo switch |
JP17 |
Power LED & keylock |
JP20 |
|
Turbo LED |
JP18 |
Speaker |
JP21 |
|
Reset switch |
JP19 |
32-bit PCI bus slots |
S1 - S4 |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
2MB |
(2) 256K x 36 |
NONE |
NONE |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
NONE |
|
4MB |
(2) 512K x 36 |
NONE |
NONE |
|
6MB |
(2) 256K x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
6MB |
(2) 256K x 36 |
(2) 512K x 36 |
NONE |
|
6MB |
(2) 512K x 36 |
(2) 256K x 36 |
NONE |
|
8MB |
(2) 512K x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
NONE |
|
8MB |
(2) 1M x 36 |
NONE |
NONE |
|
10MB |
(2) 256K x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
10MB |
(2) 256K x 36 |
(2) 1M x 36 |
NONE |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
NONE |
|
12MB |
(2) 512K x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
NONE |
|
12MB |
(2) 1M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
12MB |
(2) 1M x 36 |
(2) 512K x 36 |
NONE |
|
16MB |
(2) 1M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
NONE |
|
16MB |
(2) 2M x 36 |
NONE |
NONE |
|
18MB |
(2) 256K x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
18MB |
(2) 256K x 36 |
(2) 2M x 36 |
NONE |
|
18MB |
(2) 2M x 36 |
(2) 256K x 36 |
NONE |
|
20MB |
(2) 512K x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
20MB |
(2) 512K x 36 |
(2) 2M x 36 |
NONE |
|
20MB |
(2) 2M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
20MB |
(2) 2M x 36 |
(2) 512K x 36 |
NONE |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
NONE |
|
24MB |
(2) 2M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
NONE |
|
32MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
NONE |
|
32MB |
(2) 4M x 36 |
NONE |
NONE |
|
34MB |
(2) 256K x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
34MB |
(2) 256K x 36 |
(2) 4M x 36 |
NONE |
|
34MB |
(2) 4M x 36 |
(2) 256K x 36 |
NONE |
|
36MB |
(2) 512K x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
36MB |
(2) 512K x 36 |
(2) 4M x 36 |
NONE |
|
36MB |
(2) 4M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
36MB |
(2) 4M x 36 |
(2) 512K x 36 |
NONE |
|
40MB |
(2) 1M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
NONE |
|
40MB |
(2) 4M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
NONE |
|
DRAM CONFIGURATION (CON’T) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
48MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
NONE |
|
48MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
NONE |
|
64MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
NONE |
|
64MB |
(2) 8M x 36 |
NONE |
NONE |
|
66MB |
(2) 256K x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
66MB |
(2) 256K x 36 |
(2) 8M x 36 |
NONE |
|
66MB |
(2) 8M x 36 |
(2) 256K x 36 |
NONE |
|
68MB |
(2) 512K x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
68MB |
(2) 512K x 36 |
(2) 8M x 36 |
NONE |
|
68MB |
(2) 8M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
68MB |
(2) 8M x 36 |
(2) 512K x 36 |
NONE |
|
72MB |
(2) 1M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
NONE |
|
72MB |
(2) 8M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
NONE |
|
80MB |
(2) 2M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
NONE |
|
80MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
NONE |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
NONE |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
NONE |
|
128MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
NONE |
|
130MB |
(2) 256K x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
132MB |
(2) 512K x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
136MB |
(2) 1M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
144MB |
(2) 2M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
160MB |
(2) 4M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
192MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
|
512KB |
(4) 64K x 8 |
(4) 64K x 8 |
|
512KB |
(4) 128K x 8 |
NONE |
|
CACHE JUMPER CONFIGURATION | ||
|
Size |
JP13 |
JP14 |
|
0KB |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
256KB |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
512KB |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
CPU SPEED CONFIGURATION | |
|
Speed |
JP8 |
|
60MHz |
Open |
|
66MHz |
Closed |
|
PCI BUS INTERRUPT CONFIGURATION | ||||
|
Setting |
JP10 |
JP11 |
JP12 | |
| » |
IRQ15 |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
IRQ5 |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 1 & 2 closed | |
|
IRQ11 |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 1 & 2 closed | |
|
None |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed | |
|
Note: There are three jumpers to be set for the PCI interrupt connection. When an ISA IRQ is connected to the PCI bus, that IRQ is unavailable to the ISA bus. | ||||
|
PCI IDE IRQ14 CONFIGURATION | ||
|
Type |
JP1 |
JP2 |
|
ISA IDE controller |
Closed |
pins 2 & 3 closed |
|
PCI IDE controller (edge trigger) |
Open |
pins 4 & 5 closed |
|
PCI IDE controller (local trigger) |
Open |
pins 1 & 2 closed |
|
EPROM TYPE CONFIGURATION | ||
|
Type |
JP5 |
JP6 |
|
Normal EPROM |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
5V flash |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
12V flash |
pins 2 & 3 closed |
pins 2 & 3 closed |
