HEWLETT-PACKARD COMPANY
HP NETSERVER LE
|
Processor |
80487SX/80486DX/ODP486SX/80486DX2/Pentium Overdrive |
|
Processor Speed |
33/66(internal)MHz |
|
Chip Set |
Hewlett Packard |
|
Max. Onboard DRAM |
128MB |
|
Cache |
None |
|
BIOS |
Phoenix |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
Floppy drive interface, IDE interface, parallel port, SCSI interface, SCSI port, serial ports (2), PS/2 mouse port, VGA port |
|
NPU Options |
None |
|

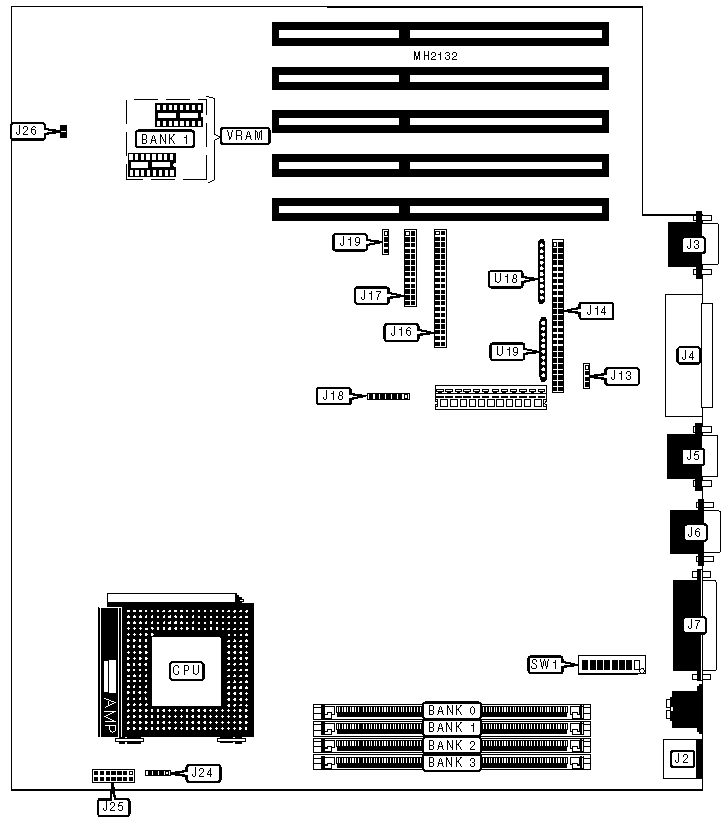

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
PS/2 mouse port |
J2 |
Floppy drive interface |
J16 |
|
VGA port |
J3 |
IDE interface |
J17 |
|
SCSI connector (external) |
J4 |
IDE interface LED |
J19 |
|
Serial port 1 |
J5 |
Chassis fan power |
J24 |
|
Serial port 2 |
J6 |
Control panel connector |
J25 |
|
Parallel port |
J7 |
Speaker |
J26 |
|
External battery |
J13 |
SCSI terminators |
U18 & U19 |
|
SCSI connector (internal) |
J14 | ||
|
Note: J24 may not be present. | |||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper/Switch |
Position | |
|
» |
Factory configured - do not alter |
J18 |
pins 1 & 2 closed |
|
» |
Flash BIOS write protect enabled |
SW1/1 |
Off |
|
Flash BIOS write protect disabled |
SW1/1 |
On | |
|
» |
On board video disabled |
SW1/2 |
On |
|
On board video enabled |
SW1/2 |
Off | |
|
» |
Password enabled |
SW1/3 |
Off |
|
Password disabled |
SW1/3 |
On | |
|
» |
CMOS memory normal operation |
SW1/4 |
Off |
|
CMOS memory clear |
SW1/4 |
On | |
|
» |
BIOS write protect enabled |
SW1/5 |
On |
|
BIOS write protect disabled |
SW1/5 |
Off | |
|
» |
Factory configured - do not alter |
SW1/8 |
On |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
4MB |
(1) 1M x 36 |
NONE |
NONE |
NONE |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
8MB |
(1) 2M x 36 |
NONE |
NONE |
NONE |
|
12MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
|
12MB |
(1) 2M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
16MB |
(1) 2M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
|
16MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
16MB |
(1) 2M x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
16MB |
(1) 4M x 36 |
NONE |
NONE |
NONE |
|
20MB |
(1) 4M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
20MB |
(1) 2M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
24MB |
(1) 4M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
|
24MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
NONE |
|
24MB |
(1) 4M x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
28MB |
(1) 4M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
32MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
32MB |
(1) 4M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
NONE |
|
DRAM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
32MB |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
32MB |
(1) 8M x 36 |
NONE |
NONE |
NONE |
|
36MB |
(1) 8M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
40MB |
(1) 4M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
40MB |
(1) 8M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
|
40MB |
(1) 8M x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
44MB |
(1) 8M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
48MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
|
48MB |
(1) 8M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
NONE |
|
48MB |
(1) 8M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
56MB |
(1) 8M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
64MB |
(1) 8M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
|
64MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
64MB |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
NONE |
|
80MB |
(1) 8M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
96MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
|
128MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
CPU TYPE CONFIGURATION | ||
|
Type |
SW1/6 |
SW1/7 |
|
80487SX |
Off |
On |
|
80486DX |
On |
Off |
|
VIDEO MEMORY CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
256KB |
(2) 256 x 4 |
NONE |
|
512KB |
(2) 256 x 4 |
(2) 256 x 4 |
|
Note: The location of Bank 0 is unidentified. | ||
